描述

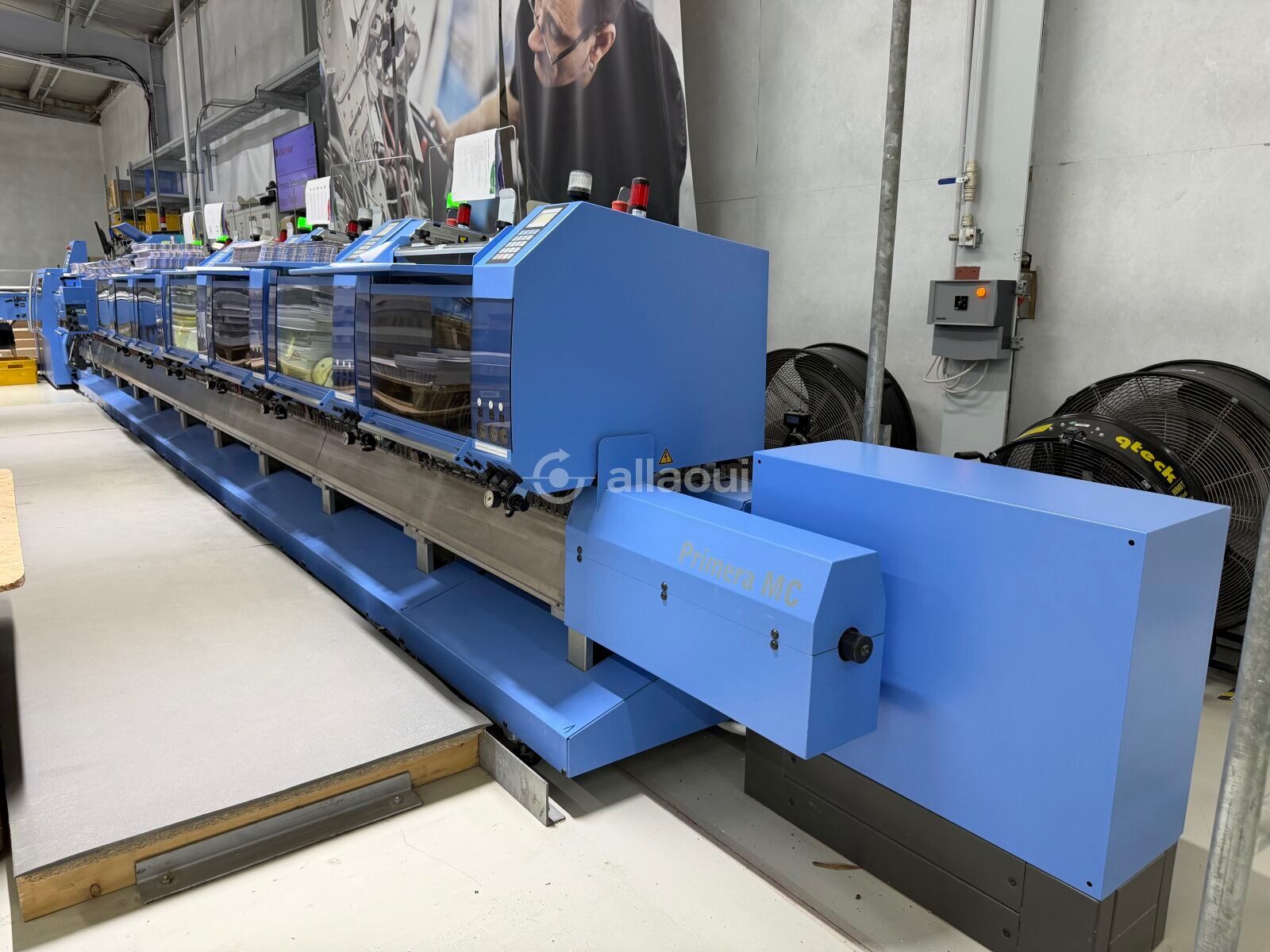

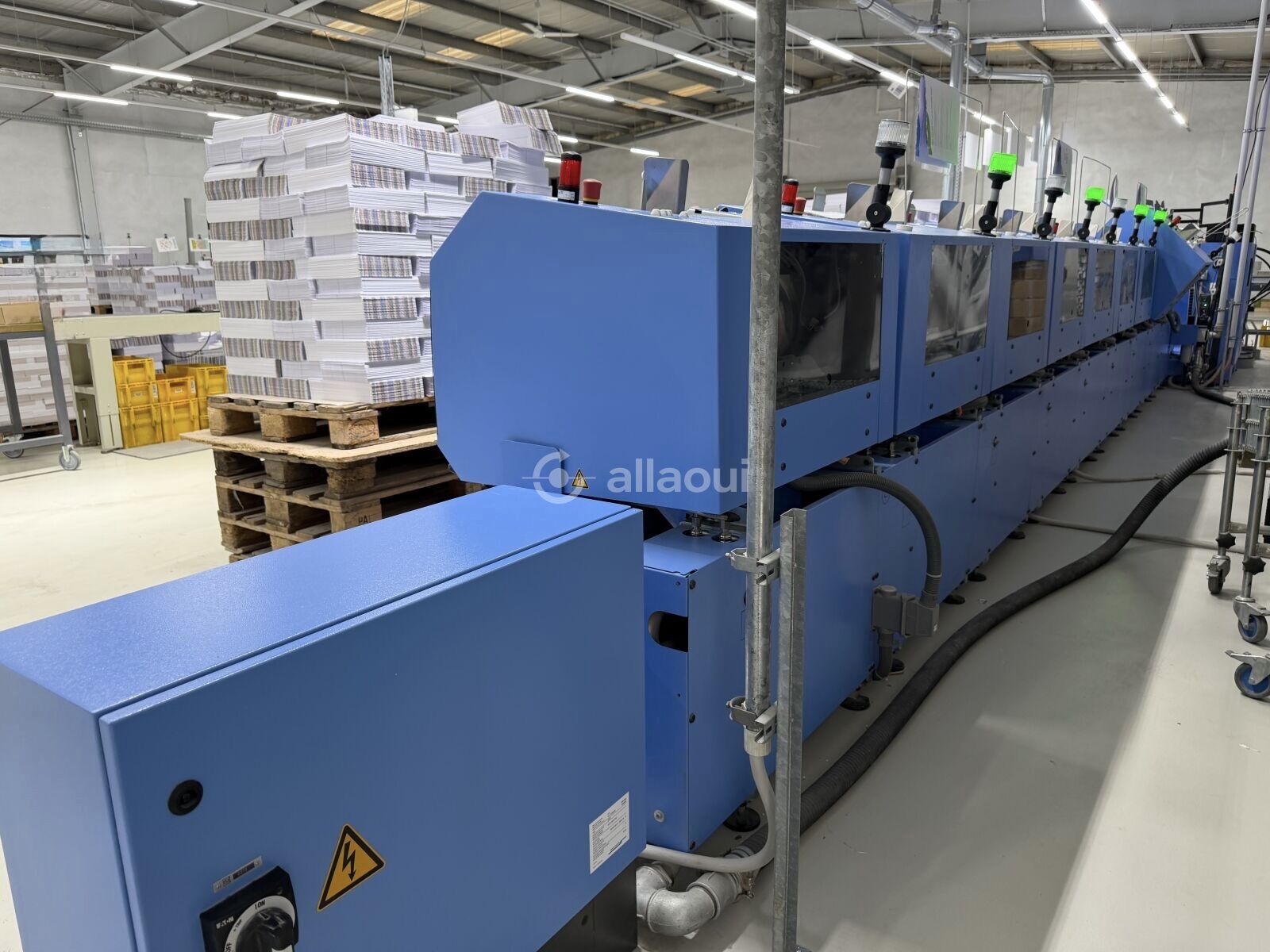

Müller Martini Primera MC: high-performance saddle stitcher with 8 flat pile feeders, ASIR 3 signature recognition, CASAC double sheet control, three-knife trimmer 0408 and Perfetto stacker.
技術規格
Equipment

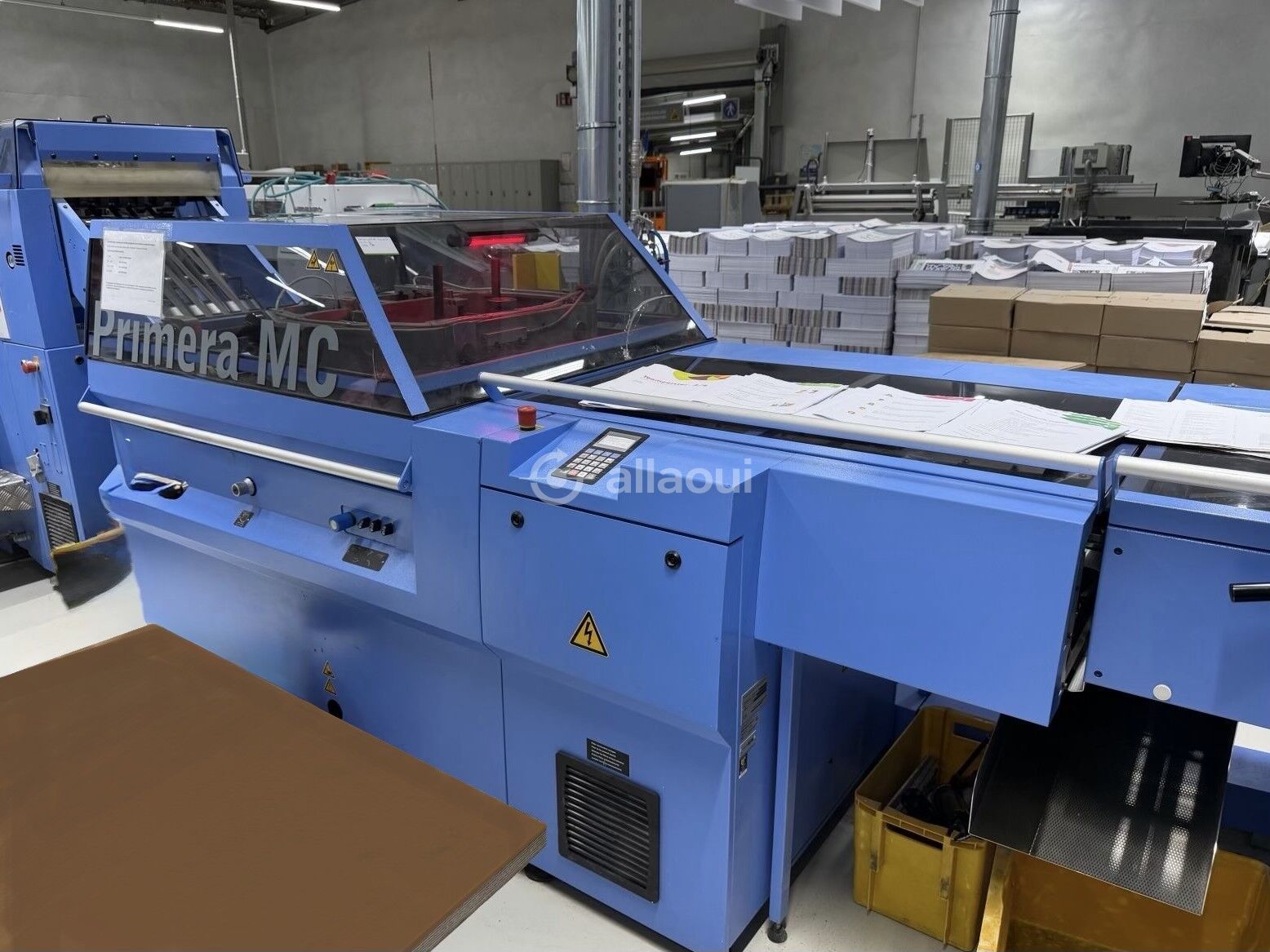

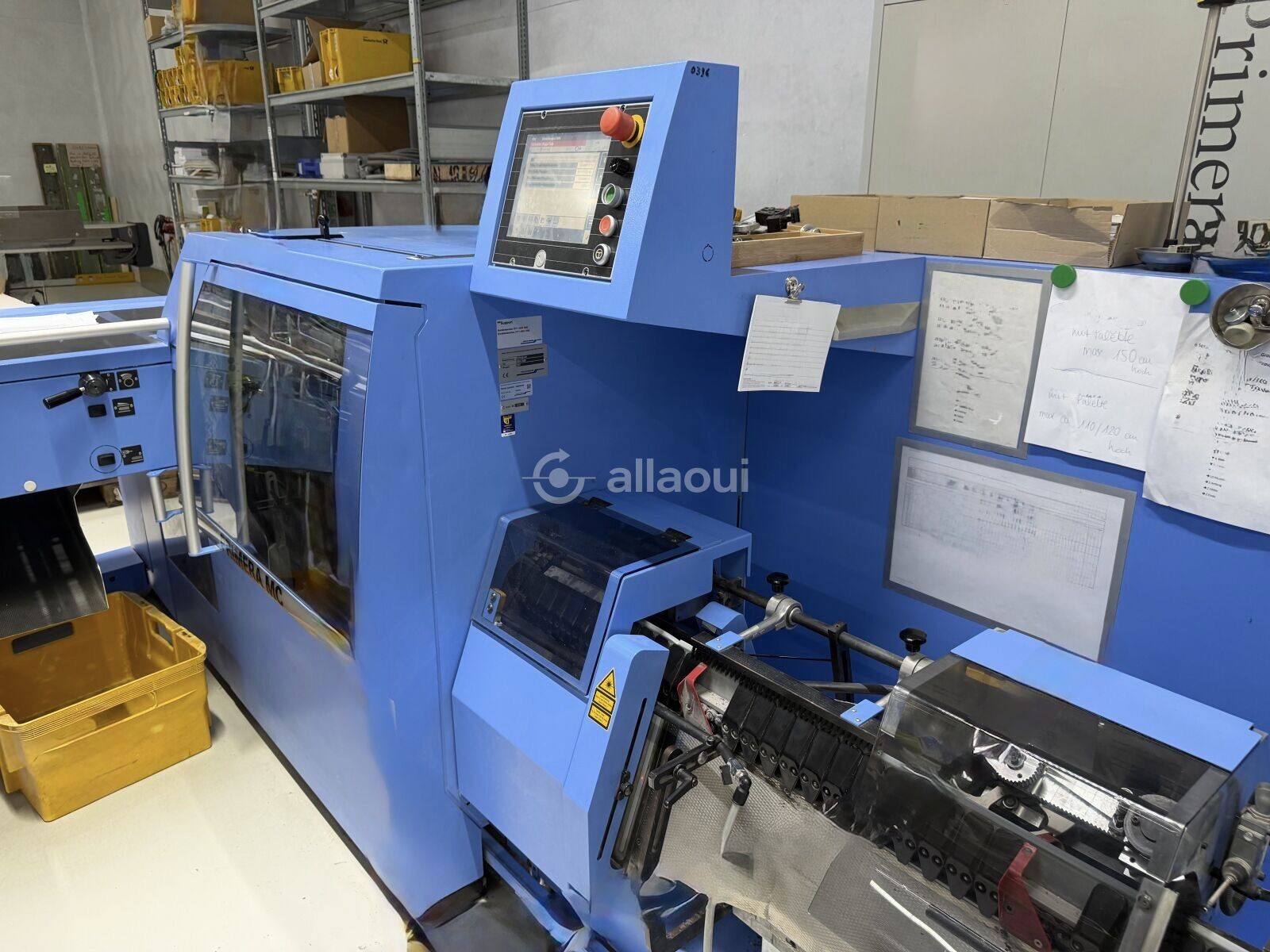

Saddle Stitcher – Primera MC (0384)
- Automatic chain adjustment
- Automatic thickness measurement at the apex (First)
- Sheet measuring device

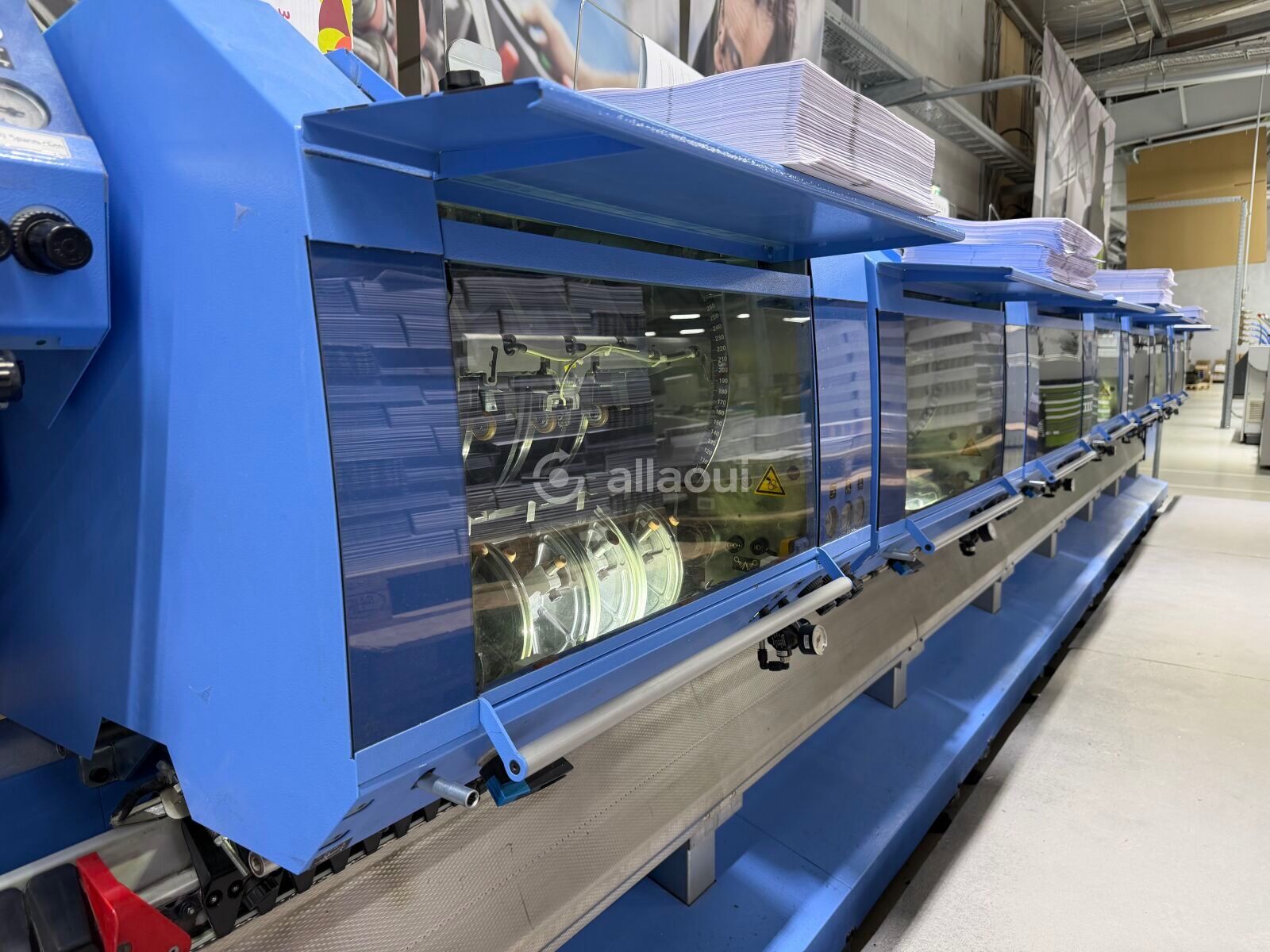

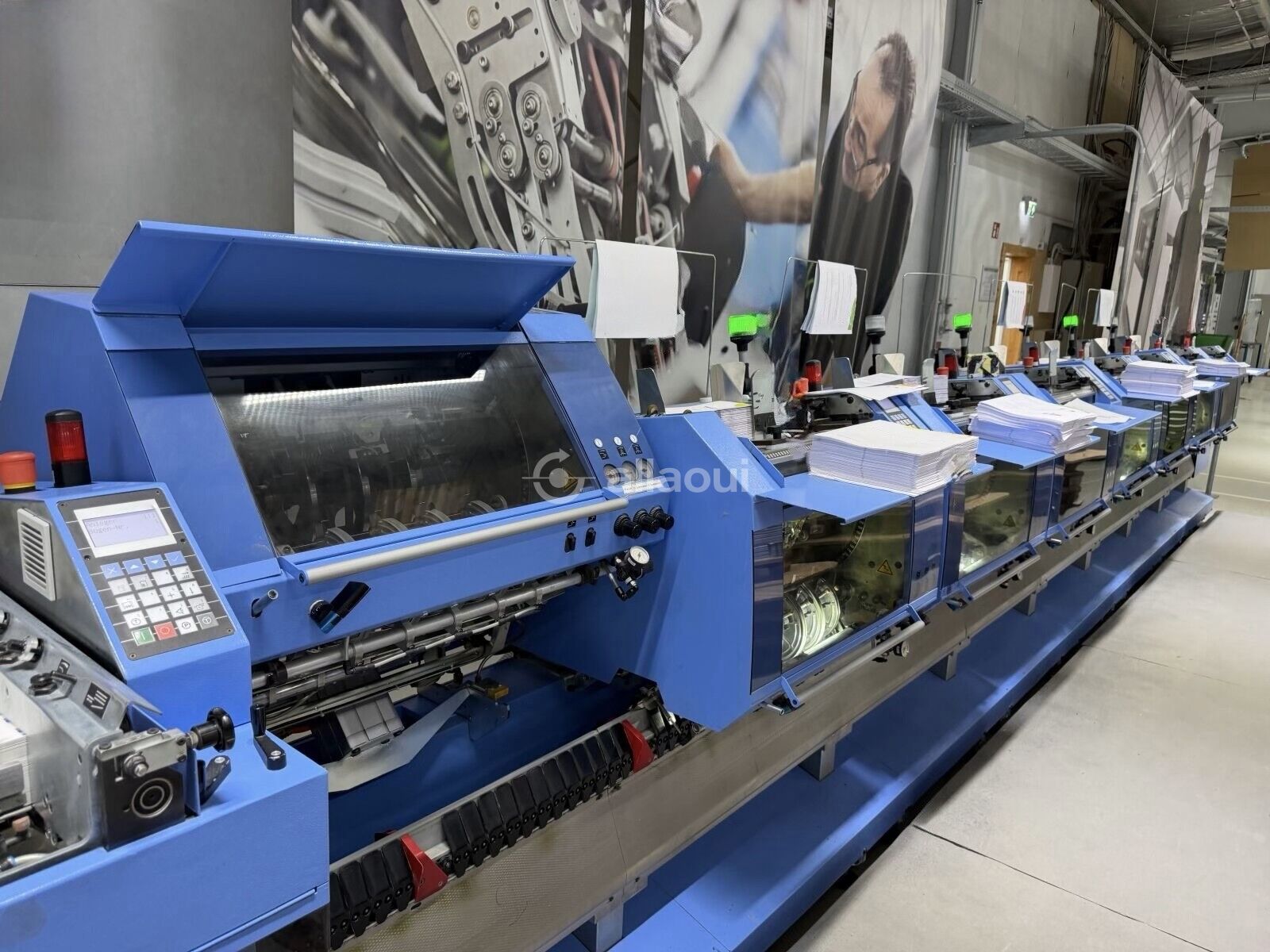

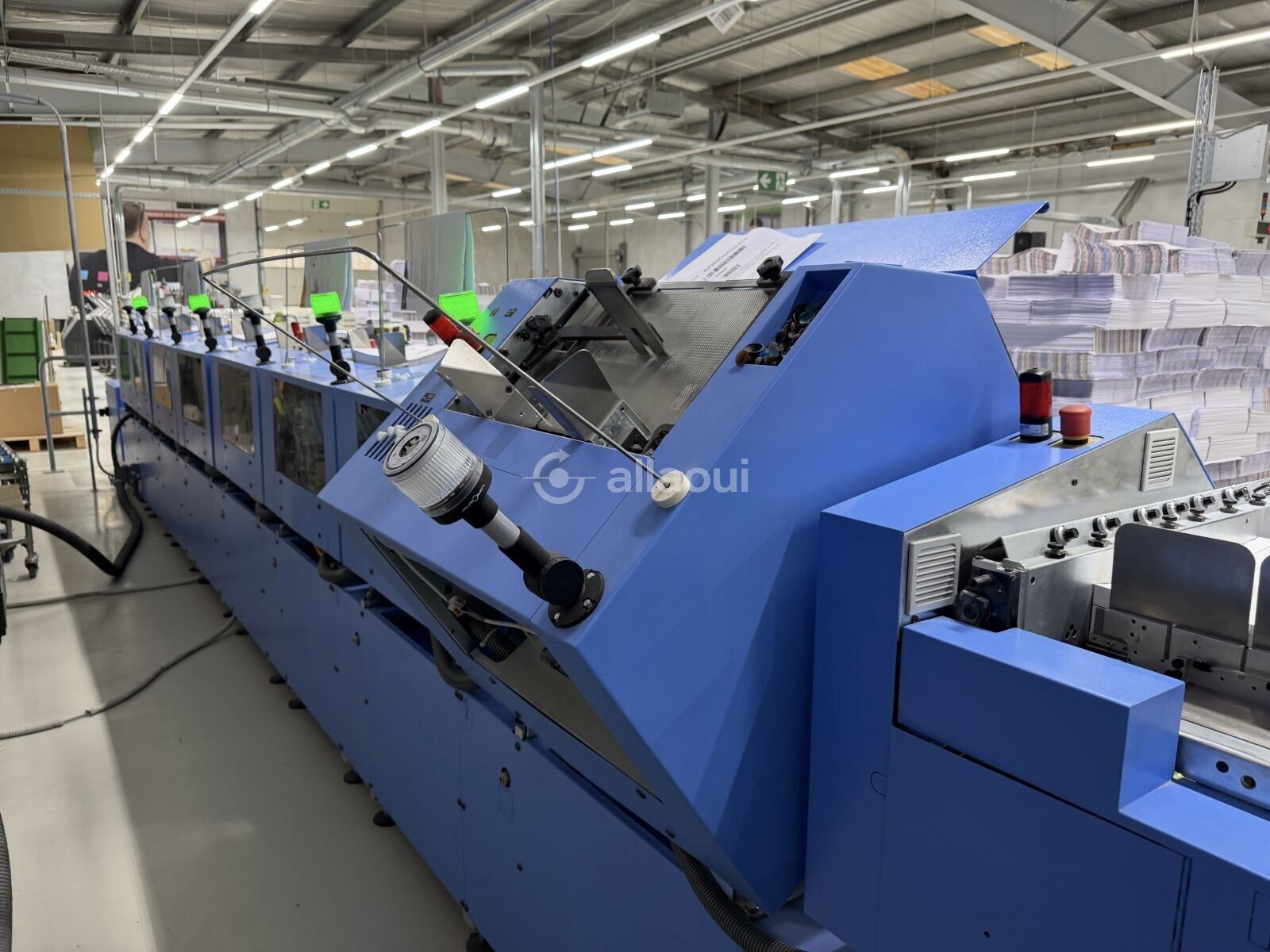

8x Flat Pile Feeders 0505 (6 units 2017, 2 units 2018)
- Tiltable
- Small format stops and large format guides integrated
- Each feeder equipped with ASIR 3 automatic signature recognition (barcode reading or image recognition)

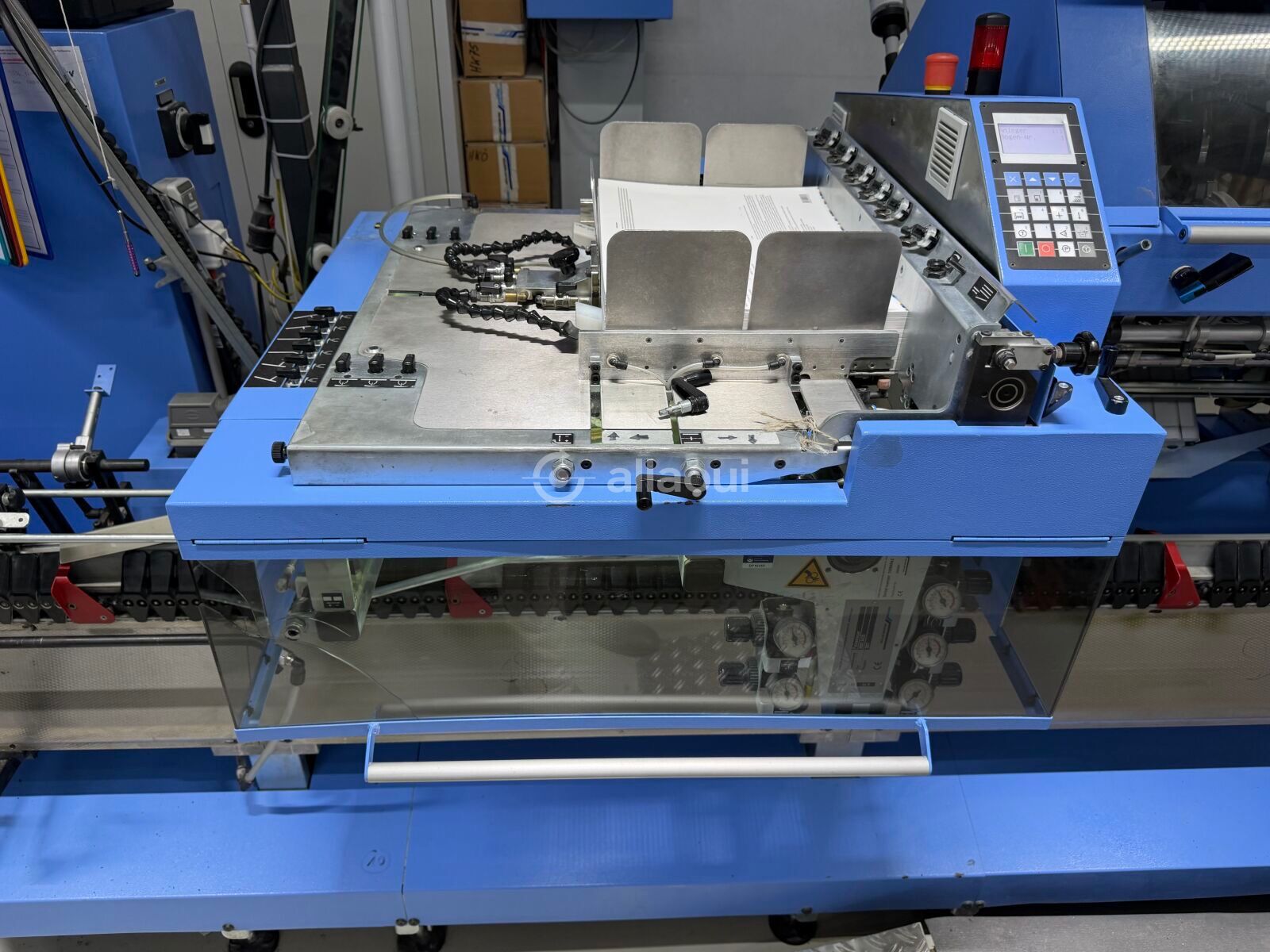

Cover Feeder 0507
- All settings (e.g. press rollers, tapes, suction point) adjustable during production
- ASIR 3 automatic signature recognition (barcode reading or image recognition)
- CASAC double sheet detection

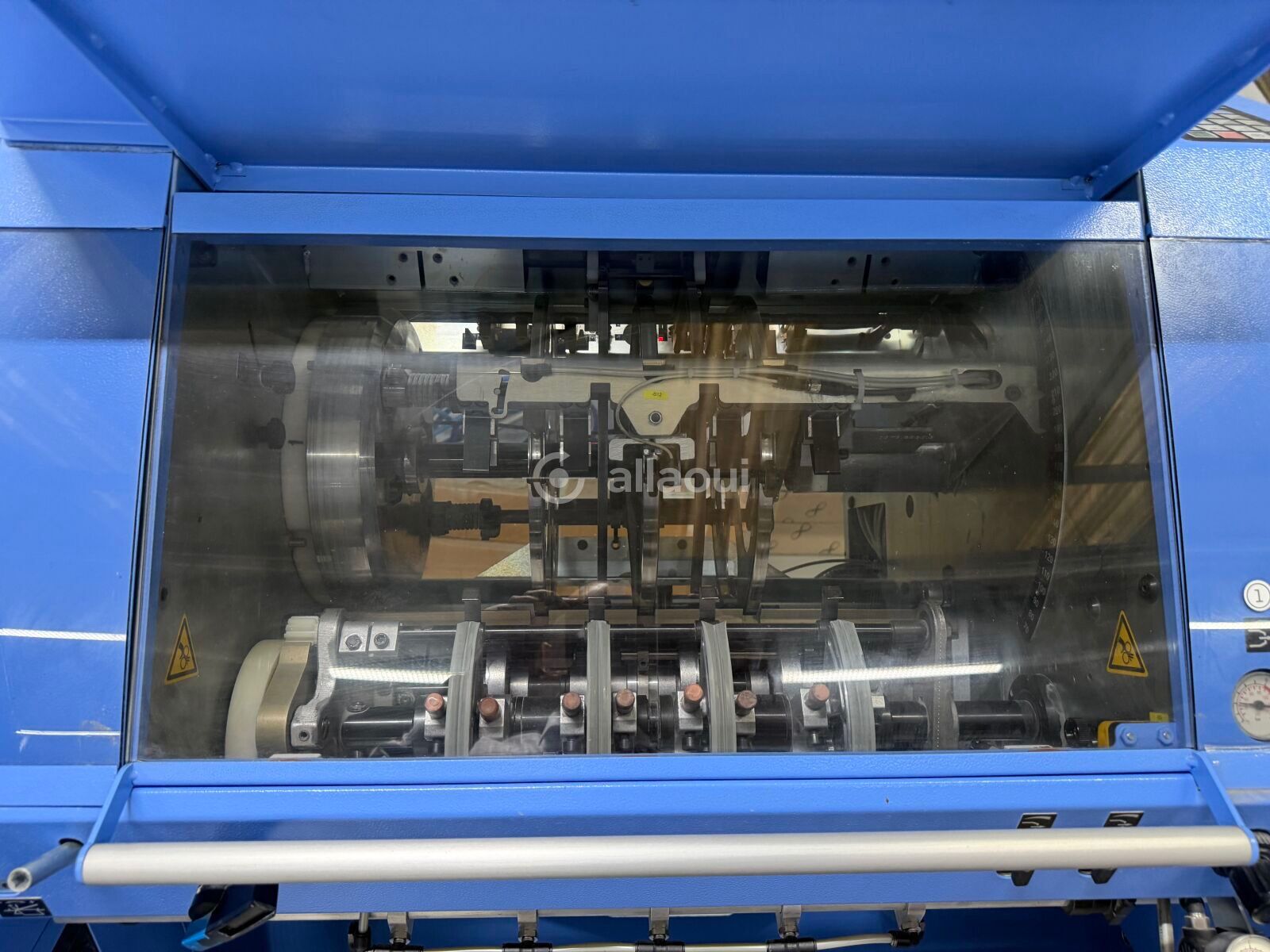

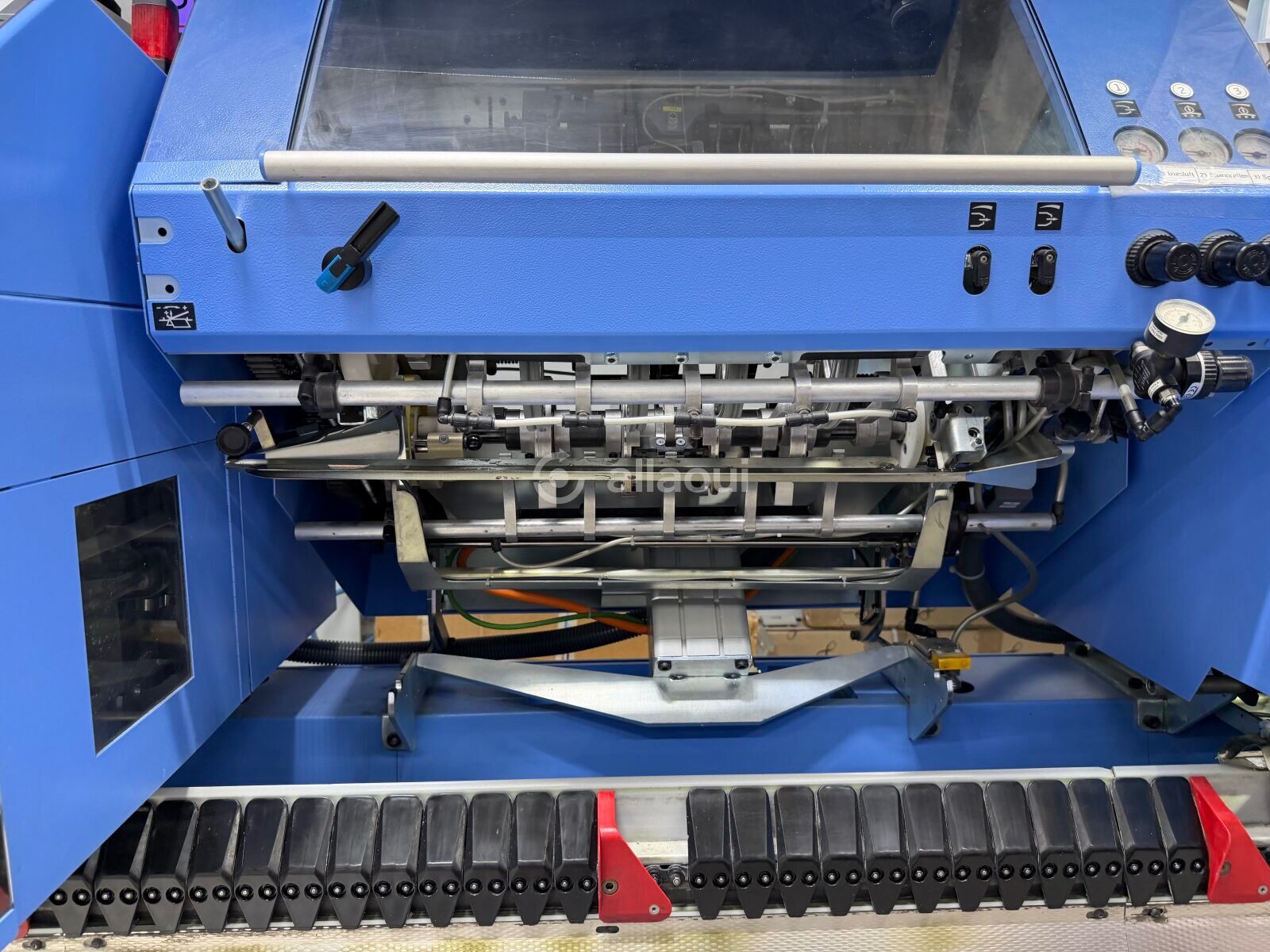

Stitching Section
- 2× HK 75Q Quick-Setup stitching heads
- 2× Wire spool unwinders for 45 kg spools

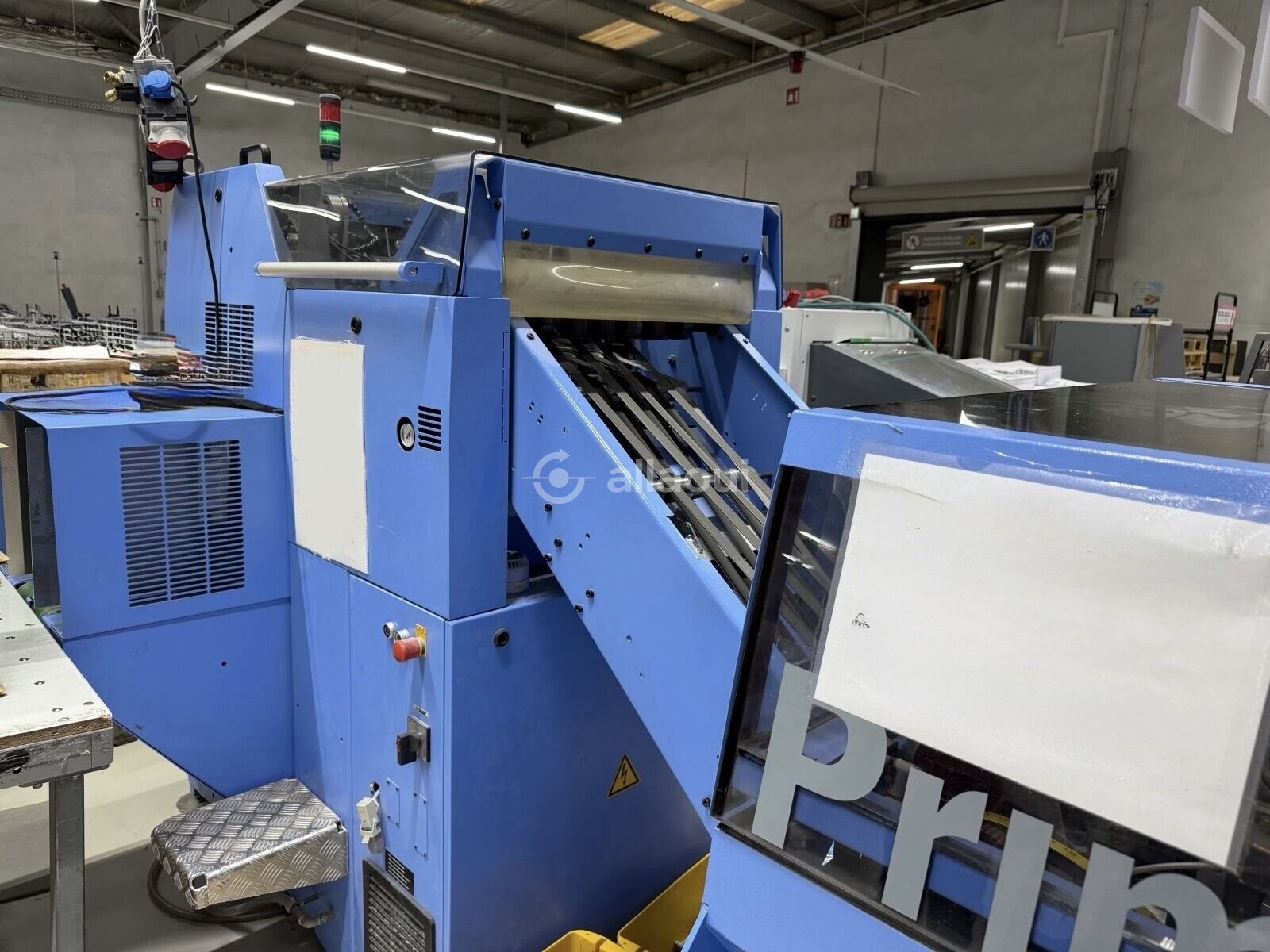

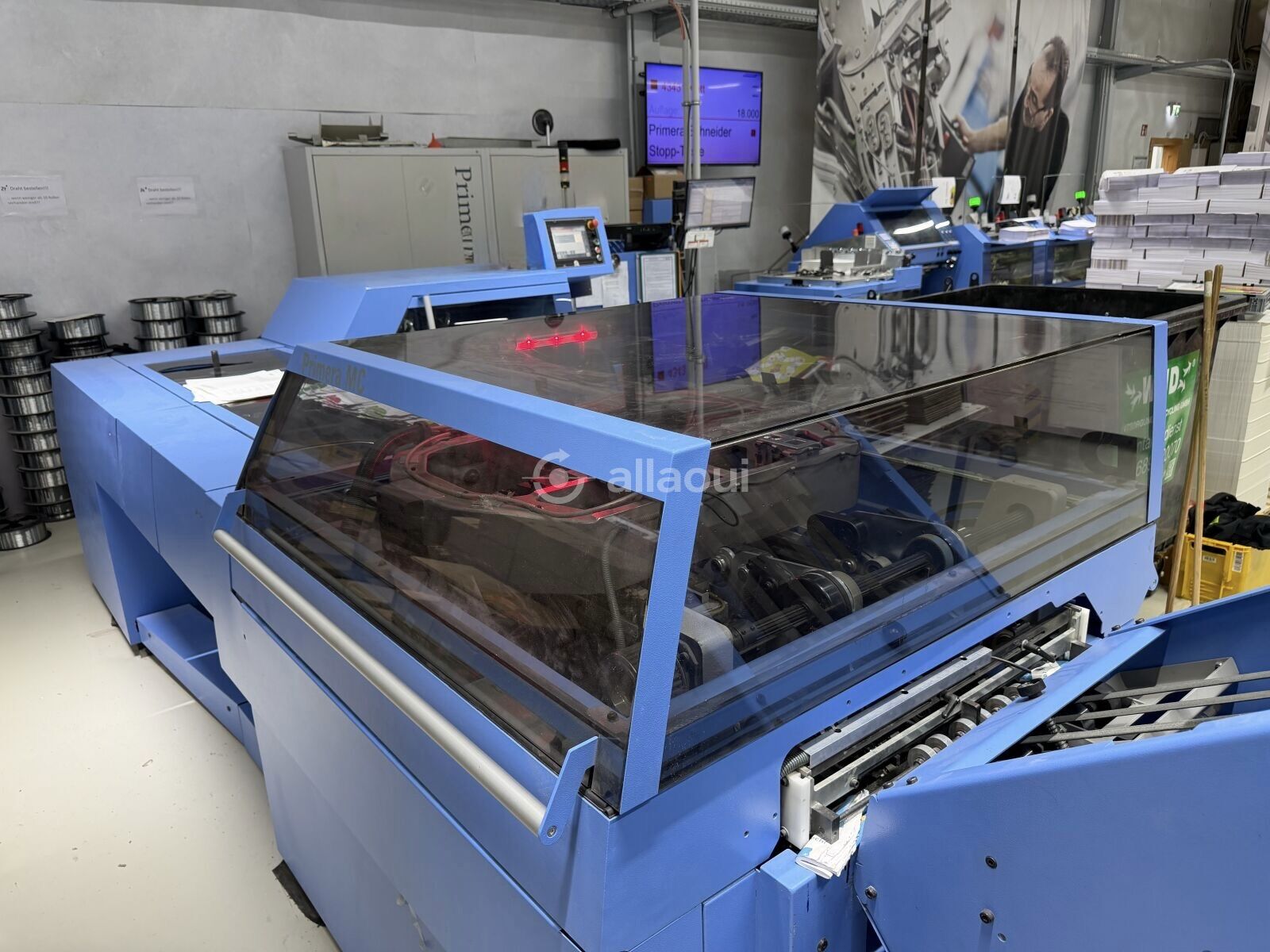

Three-Knife Trimmer 0408
- Automatic infeed adjustment
- Automatic format and thickness adjustment
- Dynamic backstop control with own drive
- Large and small format integrated
- Pneumatic knife clamping for head/foot section
- Knife sets with carbide cutting edges (2 sets)
- Center cut device with set of 6 mm punch knives (1× 6 mm punch knife, 2× lower knives) for double-up production

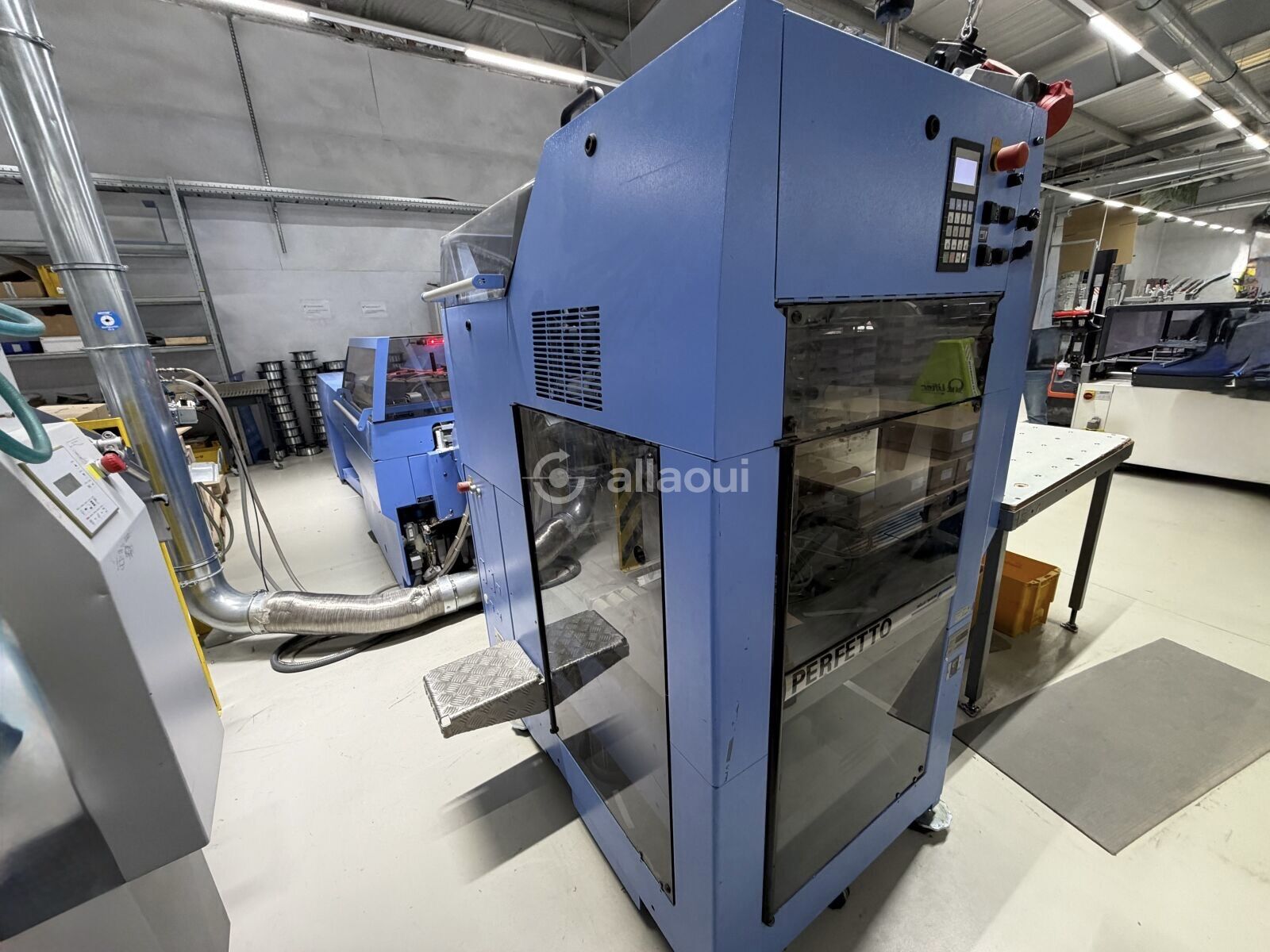

Cross Stacker – Perfetto
- For stack height up to max. 250 mm
- Control panel with MMAP control
- Infeed band S, H = 700 – 900 mm
- Mobile understructure for Perfetto, H = 250 mm
- Turntable with Amrys equipment, motorised height-adjustable pre-stack tray
- Add-on parts for double-up production
- Air table for manual takeoff and connection to band delivery
- Left band delivery
Connectivity

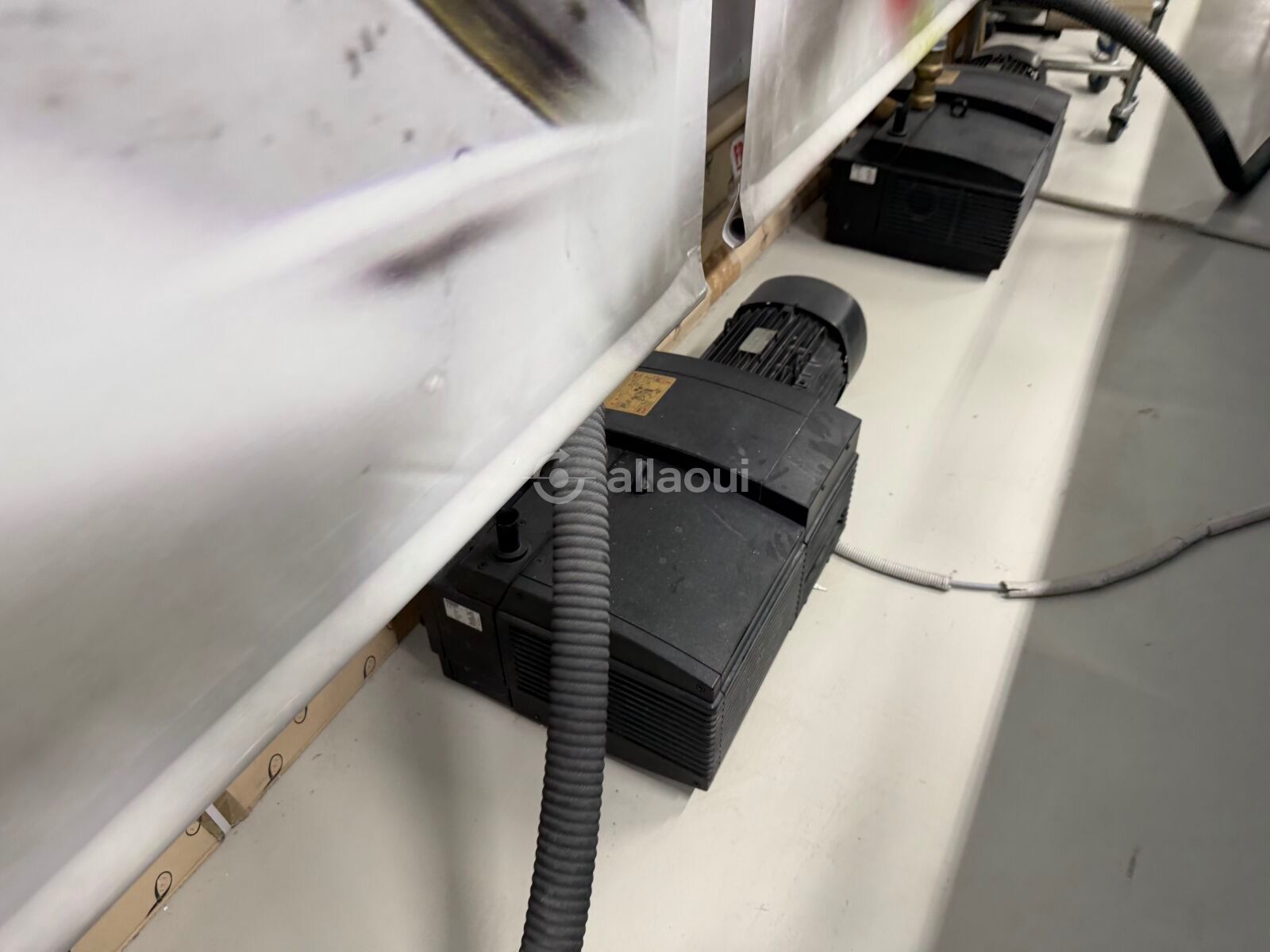

- 2× Compressors KDT 3.140 for 1.5 bar
Technical Details
| Parameter | Value |
|---|---|
| Maximum mechanical speed | 14,000 cycles/hour |
| Maximum signature size (untrimmed) | 320 × 480 mm / 12 5/8" × 18 7/8" |
| Minimum signature size (untrimmed) | 115 × 153 mm / 4 1/2" × 6" |
| Maximum product thickness at spine | 12 mm / 0.47" (with HK 75Q heads, 12 mm staples) |
| Feeder stations | 9 (6× flat pile 0505 + 2× vertical pile 0511 + 1× cover feeder 0507) |
| Staple length | 12 mm |
| Wire spool capacity | 45 kg |
| Three-knife trimmer | 0408 (with double-up center cut, 6 mm punch) |
| Cross stacker max. stack height | 250 mm |
| Cross stacker infeed band height | 700 – 900 mm |
| Production mode | Single-up and double-up |
| Quality control | ASIR 3 (barcode / image recognition) on all feeders, CASAC double sheet detection on cover feeder, Semko sideways thickness measurement (right/rear), apex thickness measurement (FIRST), staple control, oblique sheet control, cut control |
| Compressor pressure | 1.5 bar |
| Electricity (DVT 3.100) | 3× 200–460 V, 50–60 Hz |
| Electricity (KVT 3.100, KVT 3.140) | 3× 200–460 V, 50–60 Hz |
| Electricity (KDT 3.100, KDT 3.140, DTLF 250 K) | 3× 380–460 V, 50–60 Hz |
