Description
Complete folding solution for a wide range of formats and applications. Equipped with Heidelberg's most advanced PFX pallet feeder, three buckle plate folding units with 16 automatic pockets, and integrated Palamides Delta 703 for automatic stacking and banding
Specifications

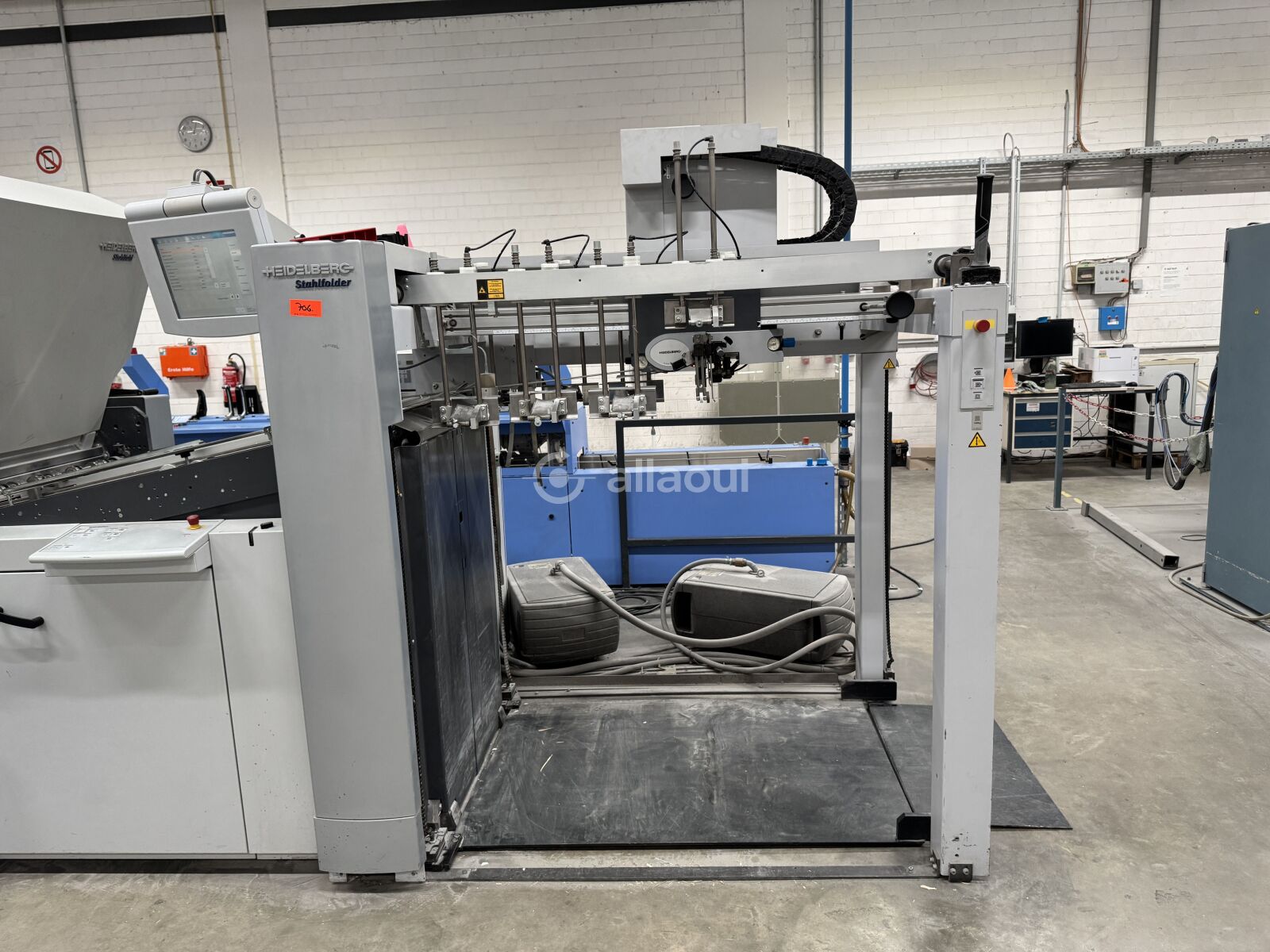

Heidelberg Stahlfolder TH 82 6-6-4 PFX (2013) + Palamides Delta 703 (2017)
Equipment
Feeder
- Type: Pallet Feeder
- Name: PFX-82
- Feeding System: Shingle-stream feeding (PFX)
- Control Unit: MCT Touchscreen
- Air Stream Table: Yes
- Vacuum Pump: 1× Heidelberg
- Sheet Thickness Measurement: Electromechanical (automatic roller gap adjustment)
- Automation Kit: Yes
Folding Units
1st Folding Unit (BUH-82)
- Folding Pockets: 6
- Pocket Adjustment: Automatic
- Upstream Knife Shafts (MWV): Yes
- Automation Kit: Yes
- Noise Protection Hood: Yes
2nd Folding Unit (BUH-82)
- Folding Pockets: 6
- Pocket Adjustment: Automatic
- Upstream Knife Shafts (MWV): Yes
- 45° Lateral Positioning System: Yes
- Automation Kit: Yes
- Noise Protection Hood: Yes
3rd Folding Unit (BUH-66)
- Folding Pockets: 4
- Pocket Adjustment: Automatic
- Automation Kit: Yes
- Noise Protection Hood: Yes
Delivery
- Manufacturer: Palamides
- Type: Delta 703
- Year: 2017
- Delivery Mode: Automatic (stacking and banding)
Technical Details
| Parameter | Value |
|---|---|
| Maximum Speed | 230 m/min (Stahlfolder TH 82) |
| Minimum Speed | 25 m/min (Stahlfolder TH 82) |
| Maximum Paper Format | 820 x 1,200 mm (Stahlfolder TH 82) |
| Minimum Paper Format | 140 x 180 mm (Stahlfolder TH 82) |
| Maximum Paper Weight | 250 g/m² (Stahlfolder TH 82) |
| Minimum Paper Weight | 40 g/m² (Stahlfolder TH 82) |
| Number of Folding Units | 3 |
| Total Folding Pockets | 16 |
| Folding Roller Diameter | 44 mm (Stahlfolder TH 82) |
| Maximum Delivery Format (1-up) | 760 x 300 mm (Palamides Delta 703) |
| Maximum Delivery Format (2-up) | 335 x 300 mm (Palamides Delta 703) |
| Maximum Delivery Format (3-up) | 235 x 300 mm (Palamides Delta 703) |
| Minimum Delivery Format | 110 x 95 mm (Palamides Delta 703) |
| Maximum Delivery Speed | 200 m/min (Palamides Delta 703) |
| Minimum Delivery Speed | 15 m/min (Palamides Delta 703) |
| Infeed Height | 400 – 1,050 mm (Palamides Delta 703) |
| Power Requirements | 3×400 V, 50/60 Hz, 50 A (Stahlfolder TH 82) |
| Power Consumption | 6.7 / 7.5 kVA (Stahlfolder TH 82) |
