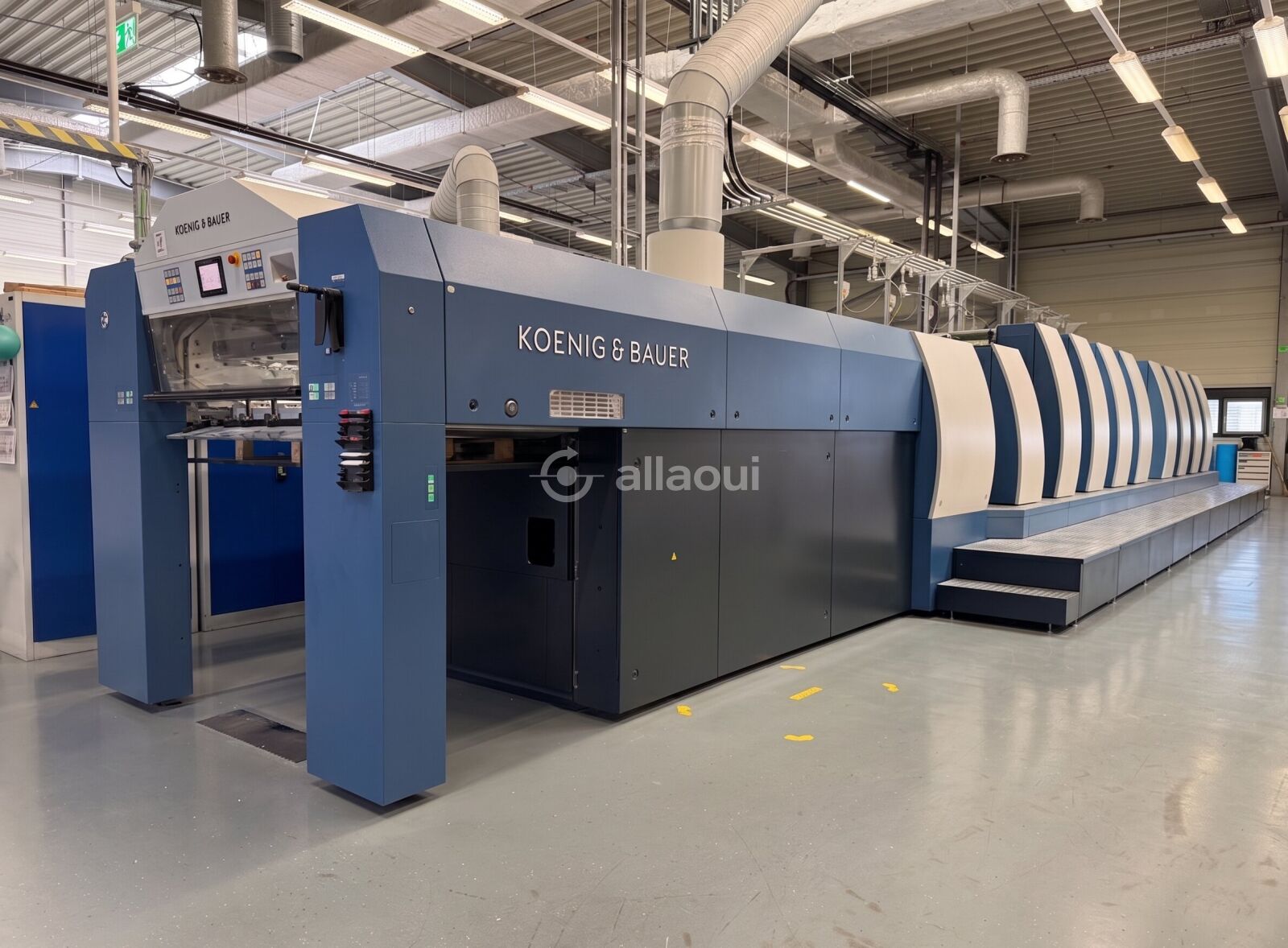

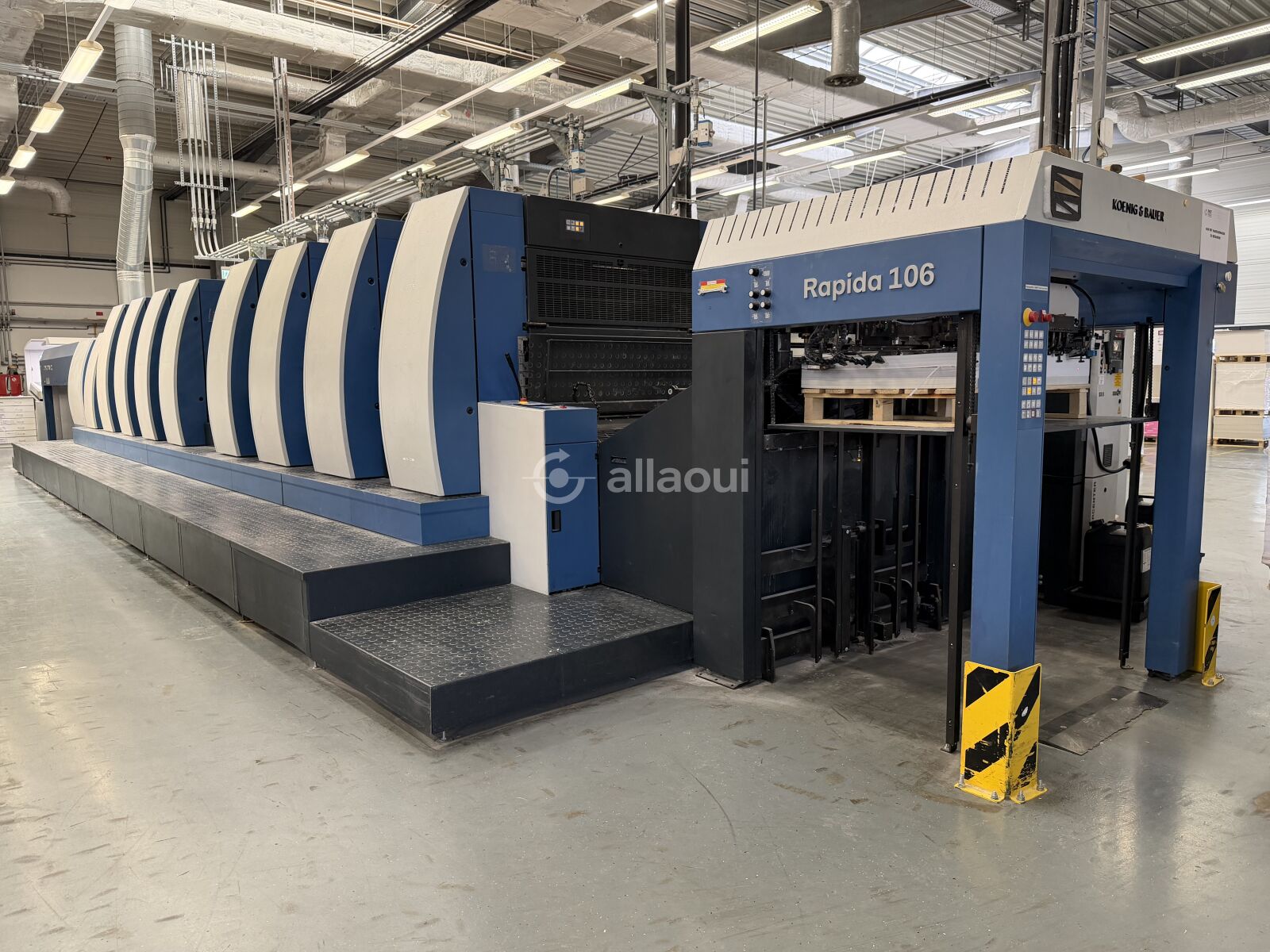

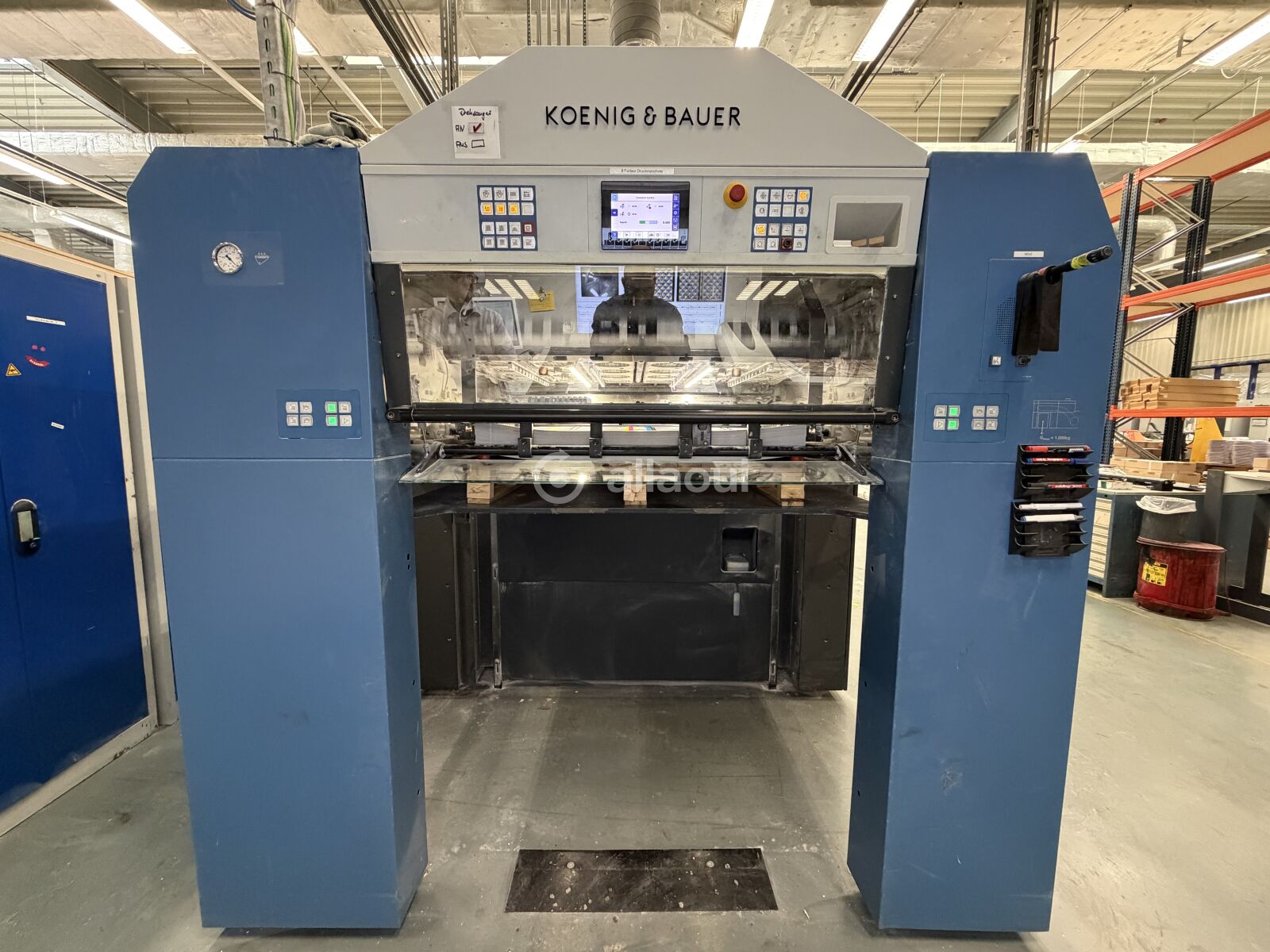

The KBA Rapida 106-8+L SW4 SIS SPC ALV2 is a flexible 8-color offset printing press with inline coating unit and simultaneous plate change (SPC). Equipped with SIS feeder, High-Speed Package (18,000 sheets/h), Thin Paper Package, VariDry IR/TL dryer, ErgoTronic, QualiTronic ColorControl and extended delivery
Specifications
Equipment

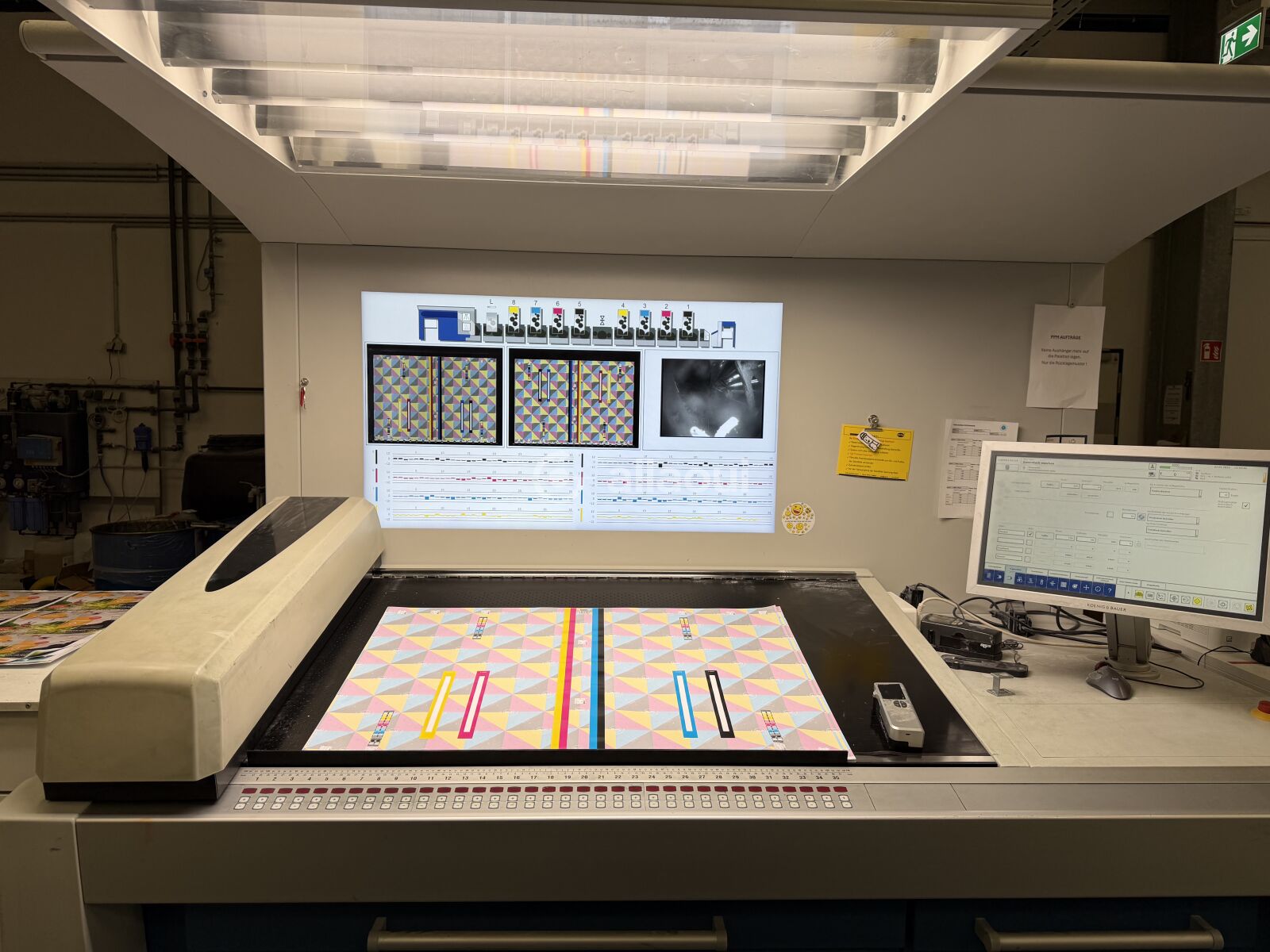

Machine Control
- ErgoTronic ColorControl
- QualiTronic ColorControl incl. QualiTronic LiveView
- QualiTronic ColorView
- QualiTronic Small Measuring Strip Height
- Wallscreen

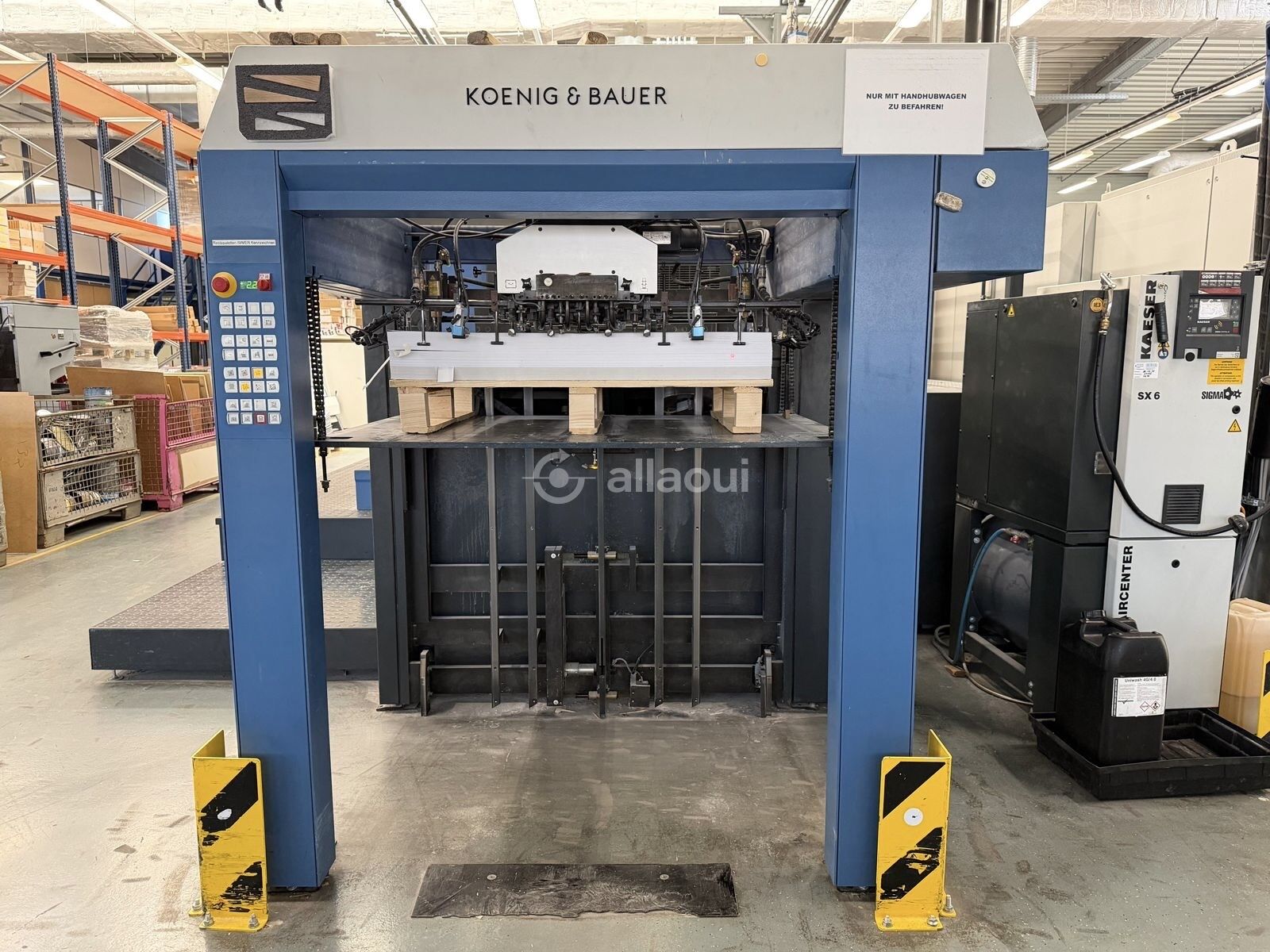

Feeder
- SIS
- Antistatic High-Performance

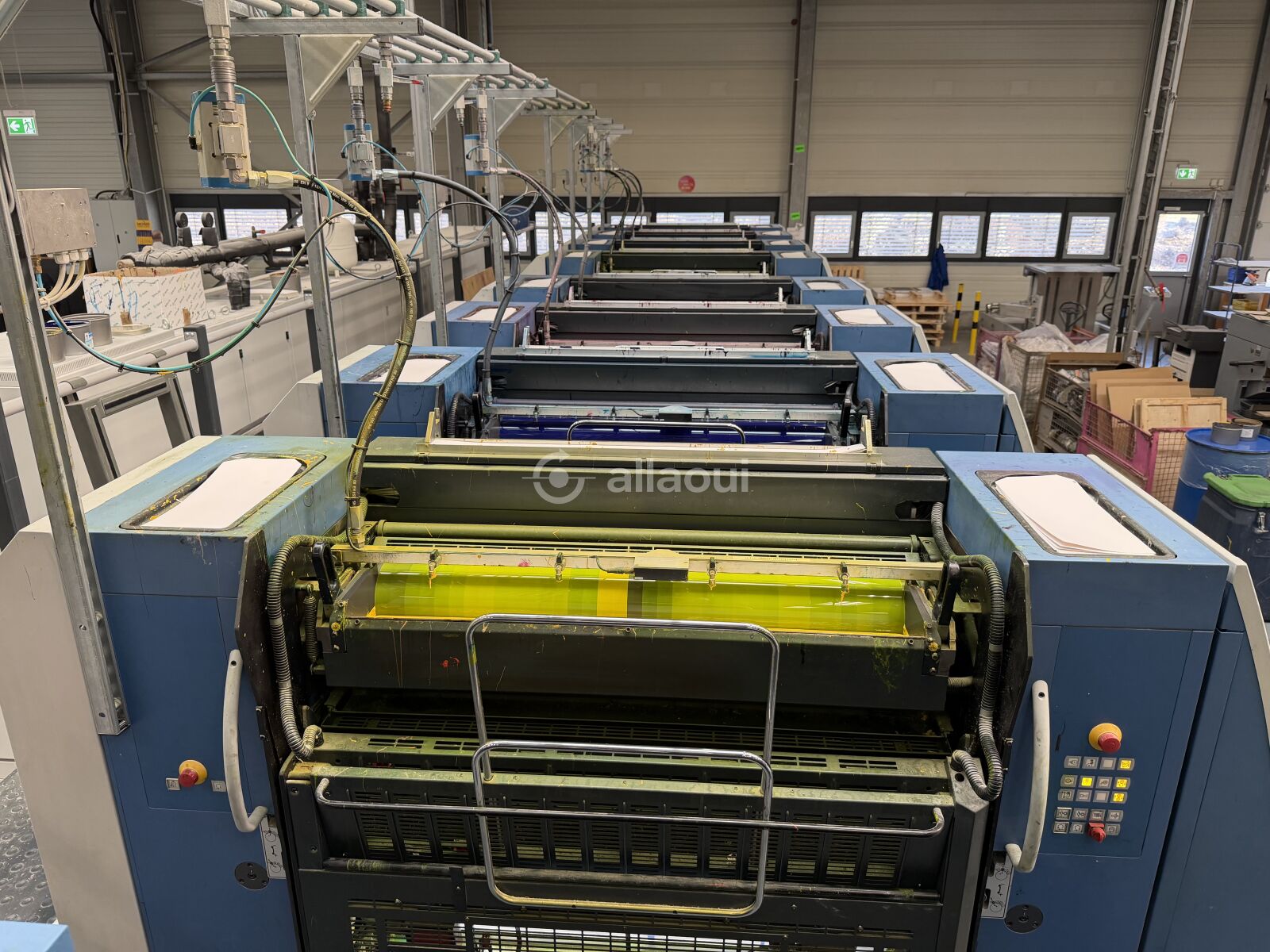

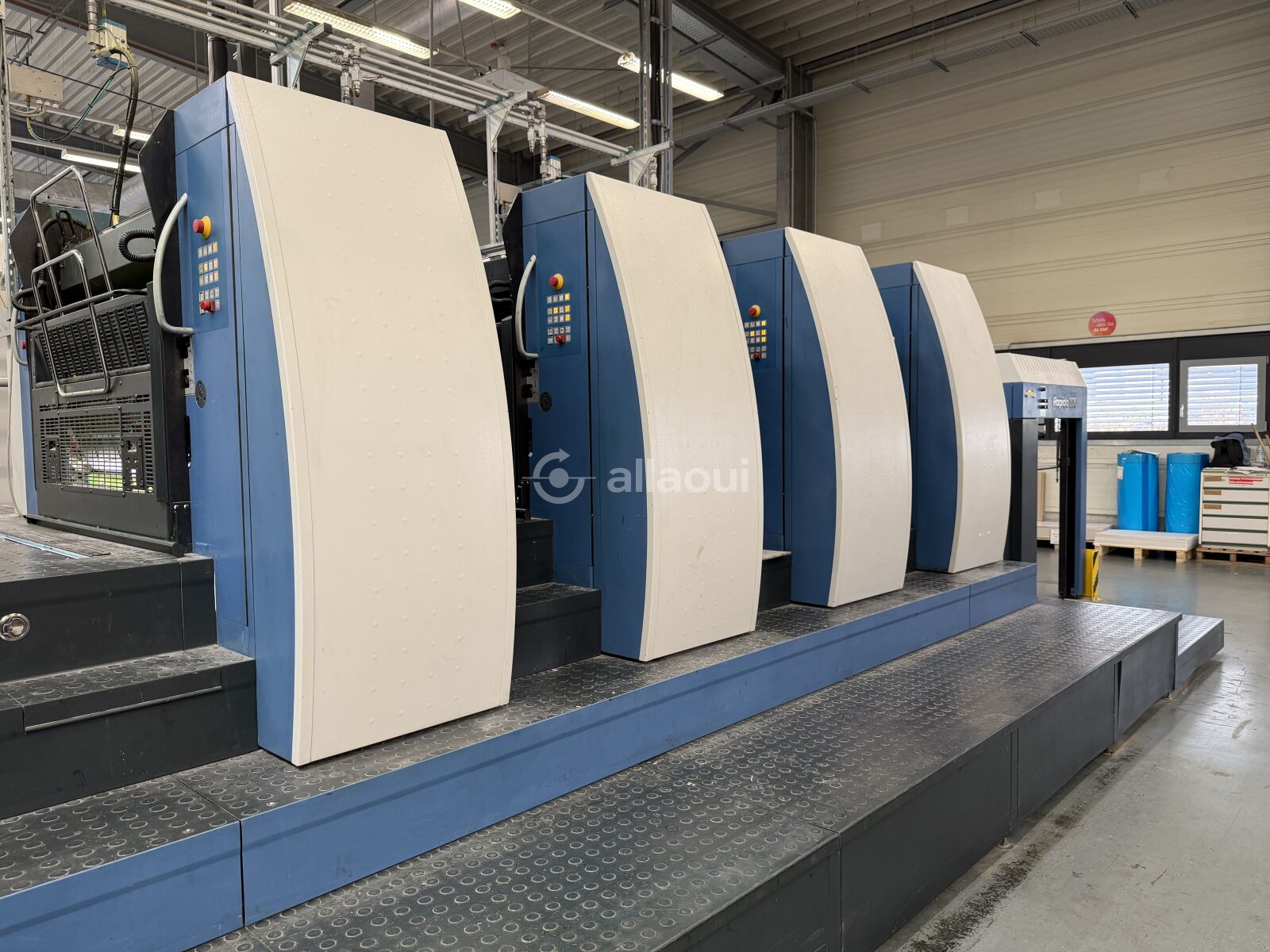

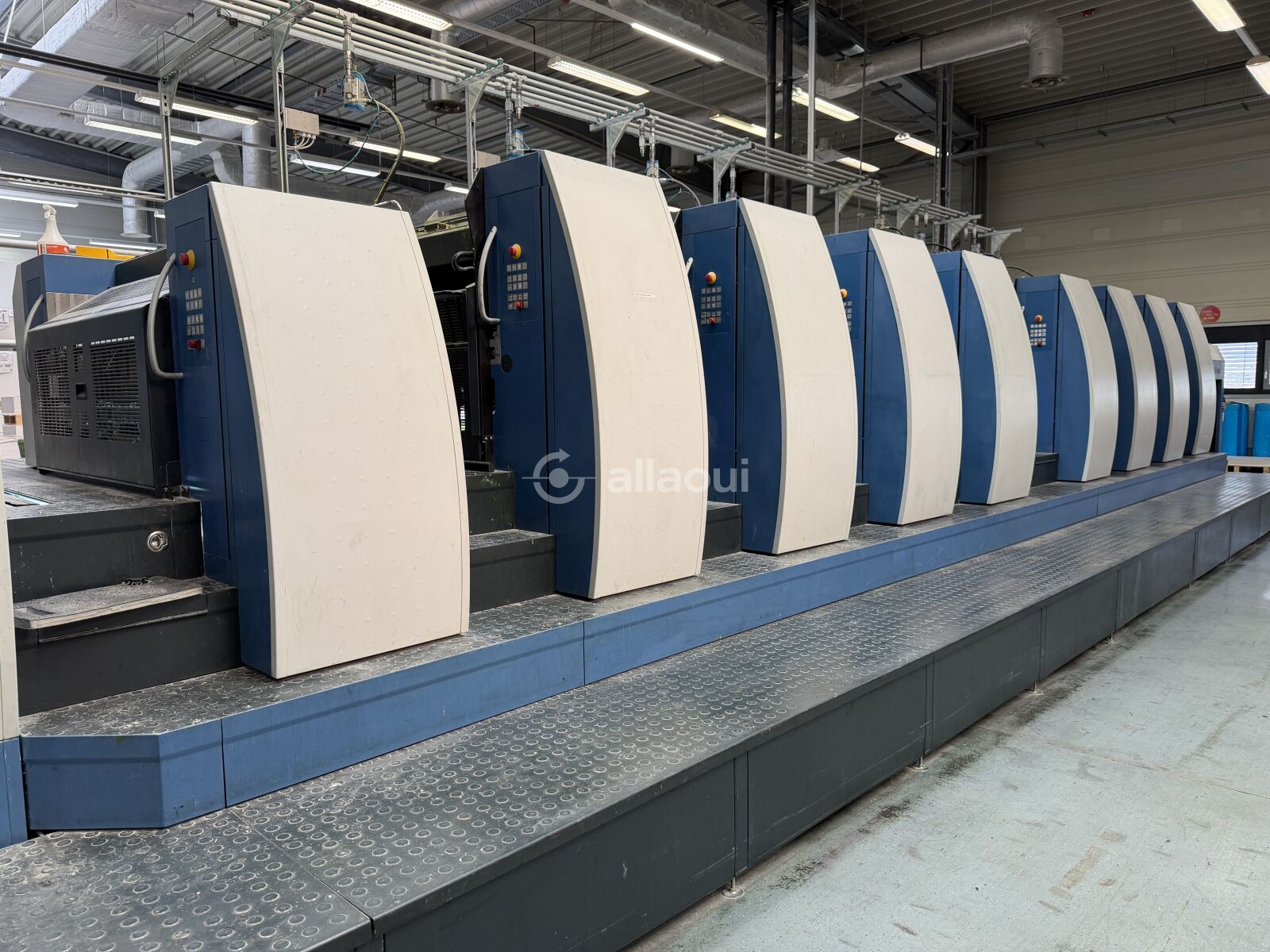

Printing Units
- 8 printing units
- 1 coating unit
- Perfecting: SW4 (4/4 or 8/0)
- Camera System (perfecting)
- DriveTronic SPC – Simultaneous Plate Change, fully automatic
- DriveTronic Plate Ident
- UV Preparation in printing units
- Thin-Paper Speed Package
- High-Speed Package – 18,000 sheets/h
Inking & Dampening
- Ink Temperature Control with Technotrans Beta.C
- Alcosmart AZR
- IPA Reduction with Technotrans Beta.F
- Water Cooled
- Ink Supply Preparation
Washing System
- CleanTronic Synchro, simultaneous washing
Coating Unit
- Chamber Doctor Blade
- Anilox Roller 100 L/cm, 11 cm³/m², 60°, hexagonal
- Coating Supply and Cleaning System (HARRIS & BRUNO)

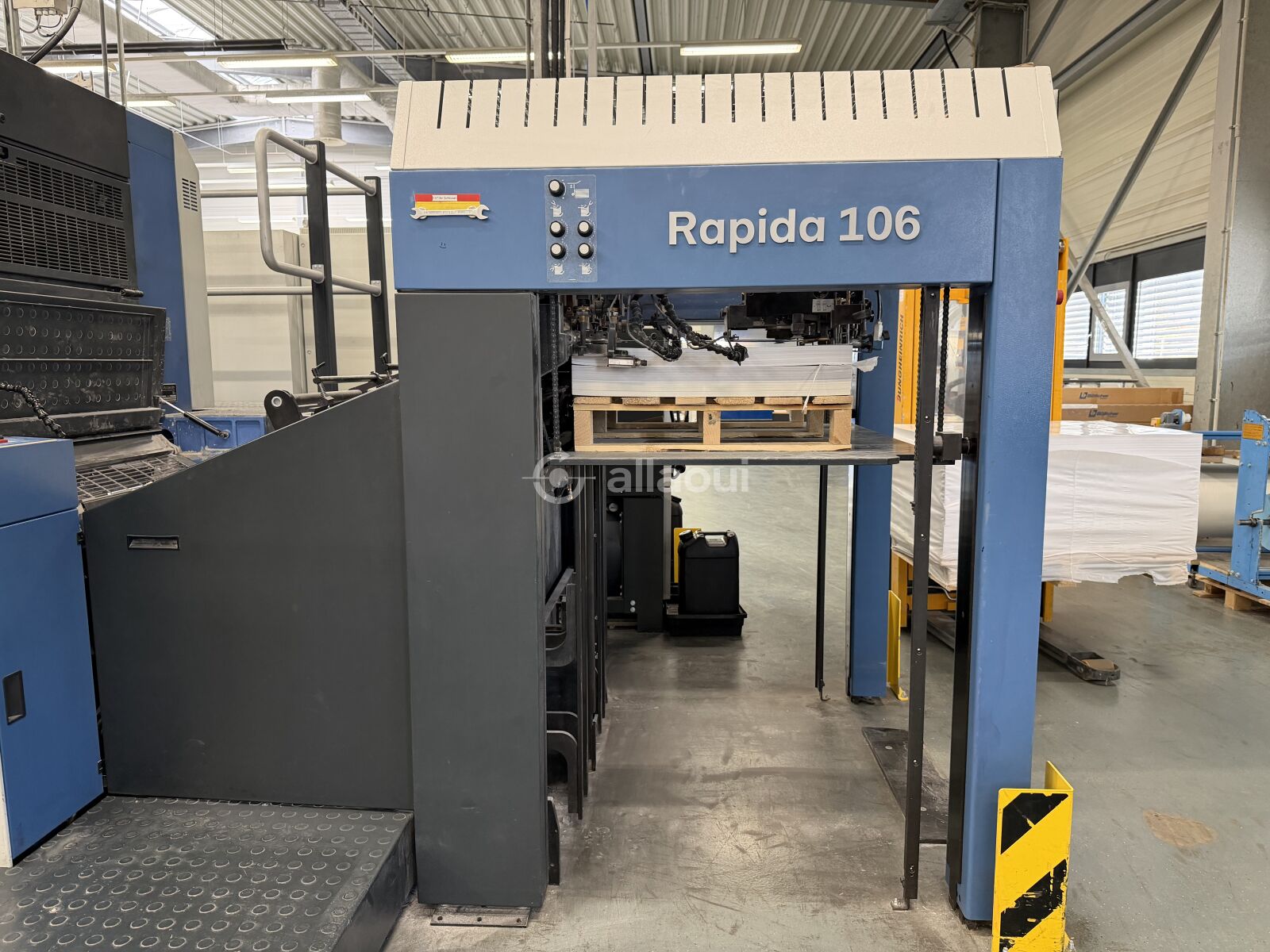

Delivery
- Delivery Extension ALV2 (2,400 mm)
- VariDry IR/TL
- Powder Extraction
- EES – Emission Extraction System
Technical Details
| Parameter | Value |
|---|---|
| Output | up to 18,000 sheets/h |
| Max. sheet format | 740 × 1,060 mm / 29.1" × 41.7" |
| Min. sheet format | 340 × 480 mm / 13.4" × 18.9" |
| Min. sheet format (perfecting) | 400 × 480 mm / 15.7" × 18.9" |
| Max. print format | 730 × 1,050 mm / 28.7" × 41.3" |
| Max. print format (perfecting) | 720 × 1,050 mm / 28.3" × 41.3" |
| Printing plate format | 795 × 1,060 mm / 31.3" × 41.7" |
| Coating plate format | 795 × 1,060 mm / 31.3" × 41.7" |
| Blanket format | 860 × 1,070 mm / 33.9" × 42.1" |
| Substrate thickness (standard) | 0.04 – 0.7 mm |
| Substrate thickness (perfecting) | 0.04 – 0.6 mm |
| Gripper margin | 10 mm |
| Pile height – feeder | 1,250 mm |
| Pile height – delivery | 1,200 mm |
| Year of manufacture | 2019 |
| Year of installation | 2020 |
