Specifications
Equipment
Robot – KODAK APL (Year of manufacture: 2013)
- Automatic Pallet Loader (APL) for automated plate feeding to the platesetter, version with 2 loading segments
- Automatic loading and unloading enables extended unattended operation of the line

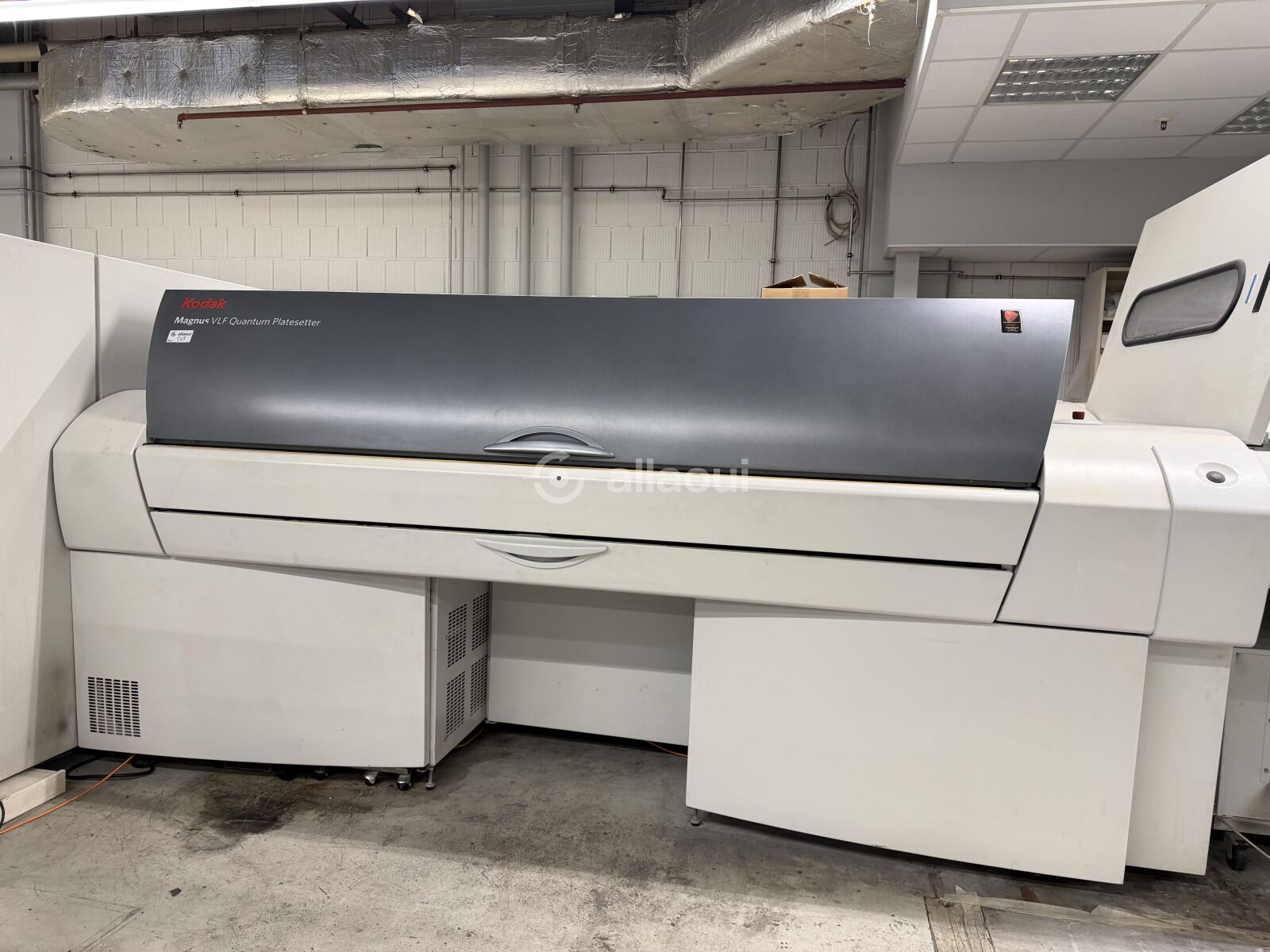

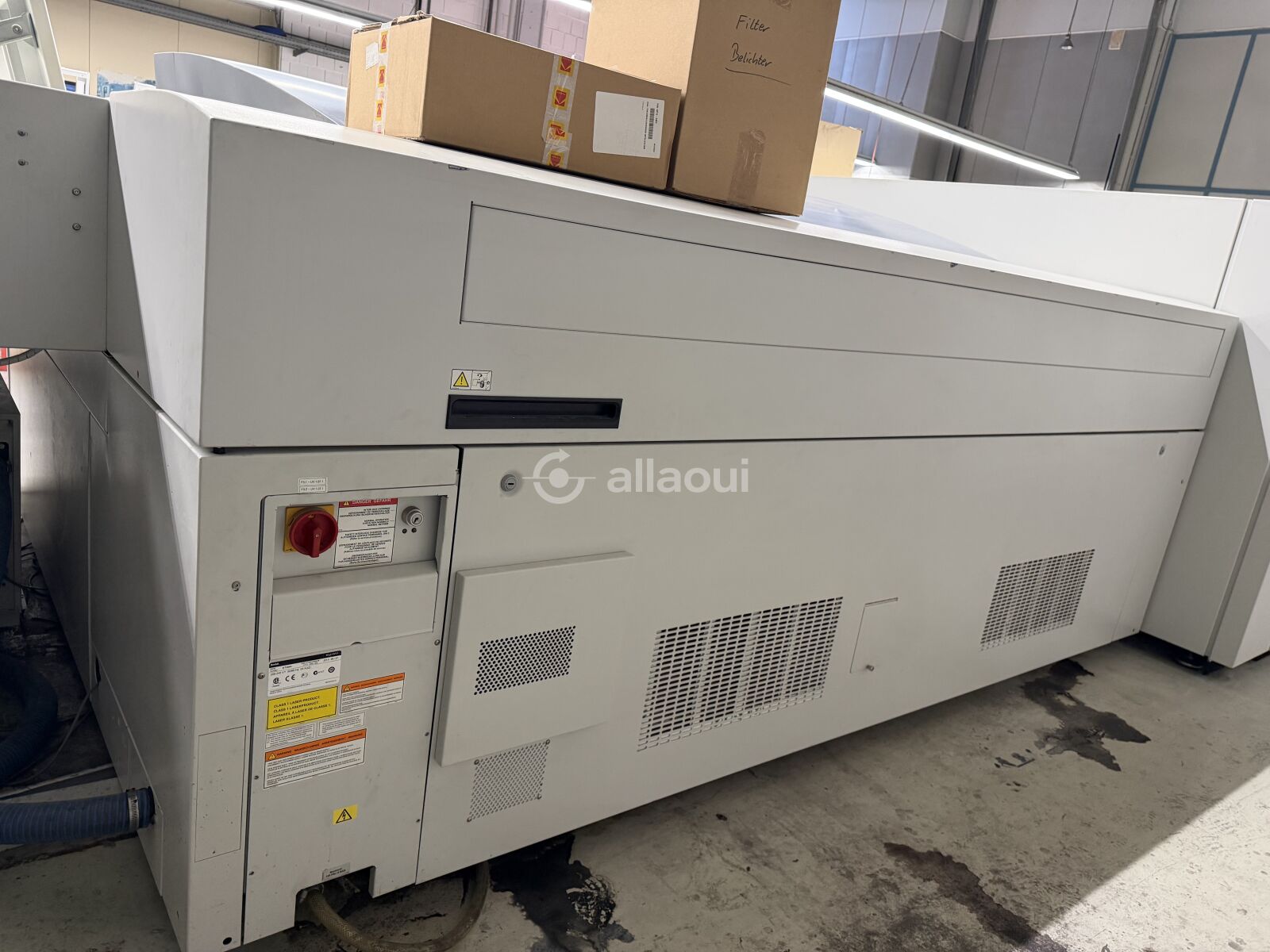

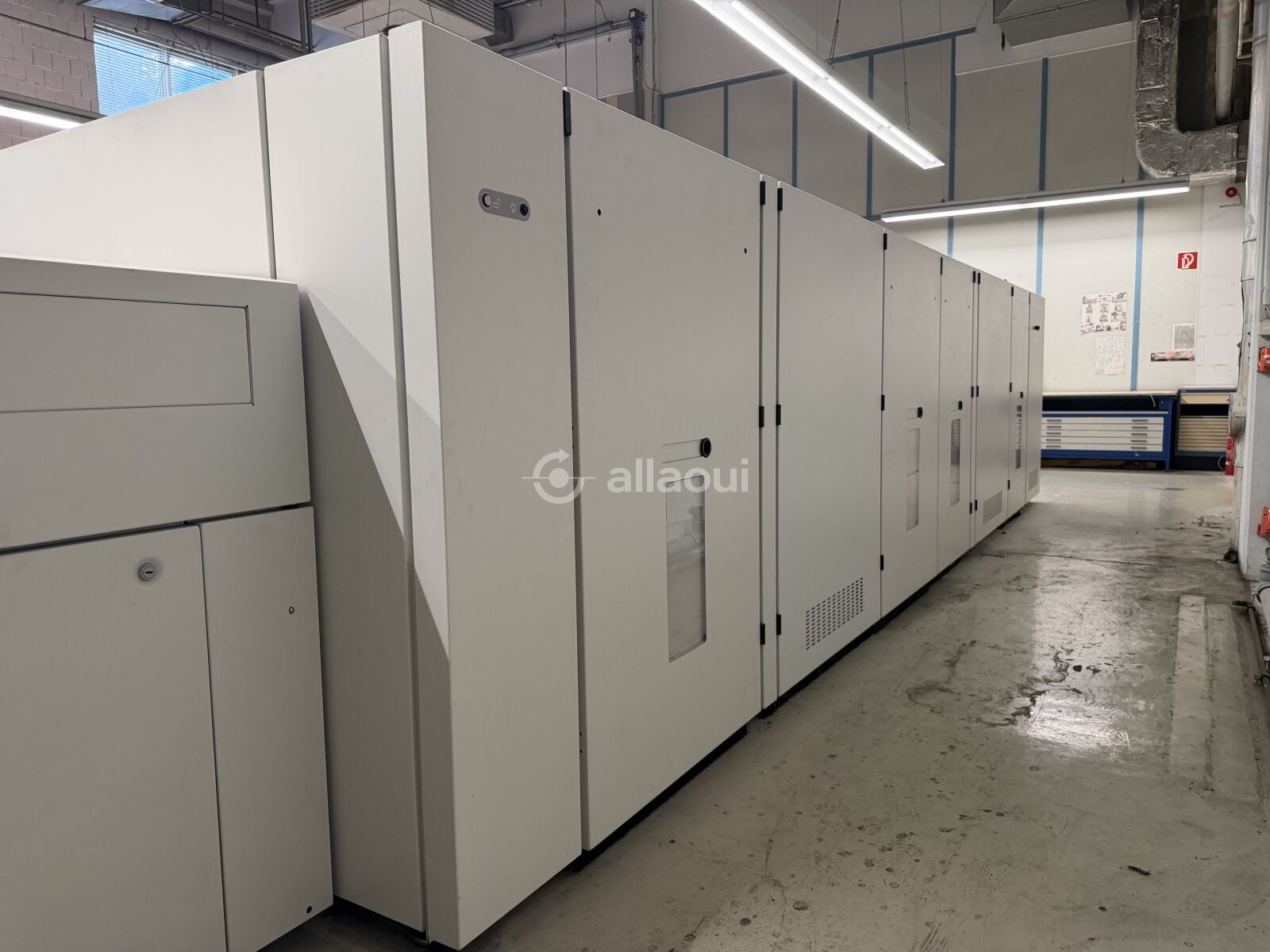

Platesetter – KODAK Magnus VLF Quantum 6383 V-Speed / MTA (Year of manufacture: 2013)
- Thermal Computer-to-Plate (CTP) external-drum imager for large format (VLF), 830 nm infrared thermal imaging
- Kodak SQUAREspot imaging technology with temperature compensation for fit and register accuracy
- MTA automation (multi-cassette loading) for semi-automated plate changing

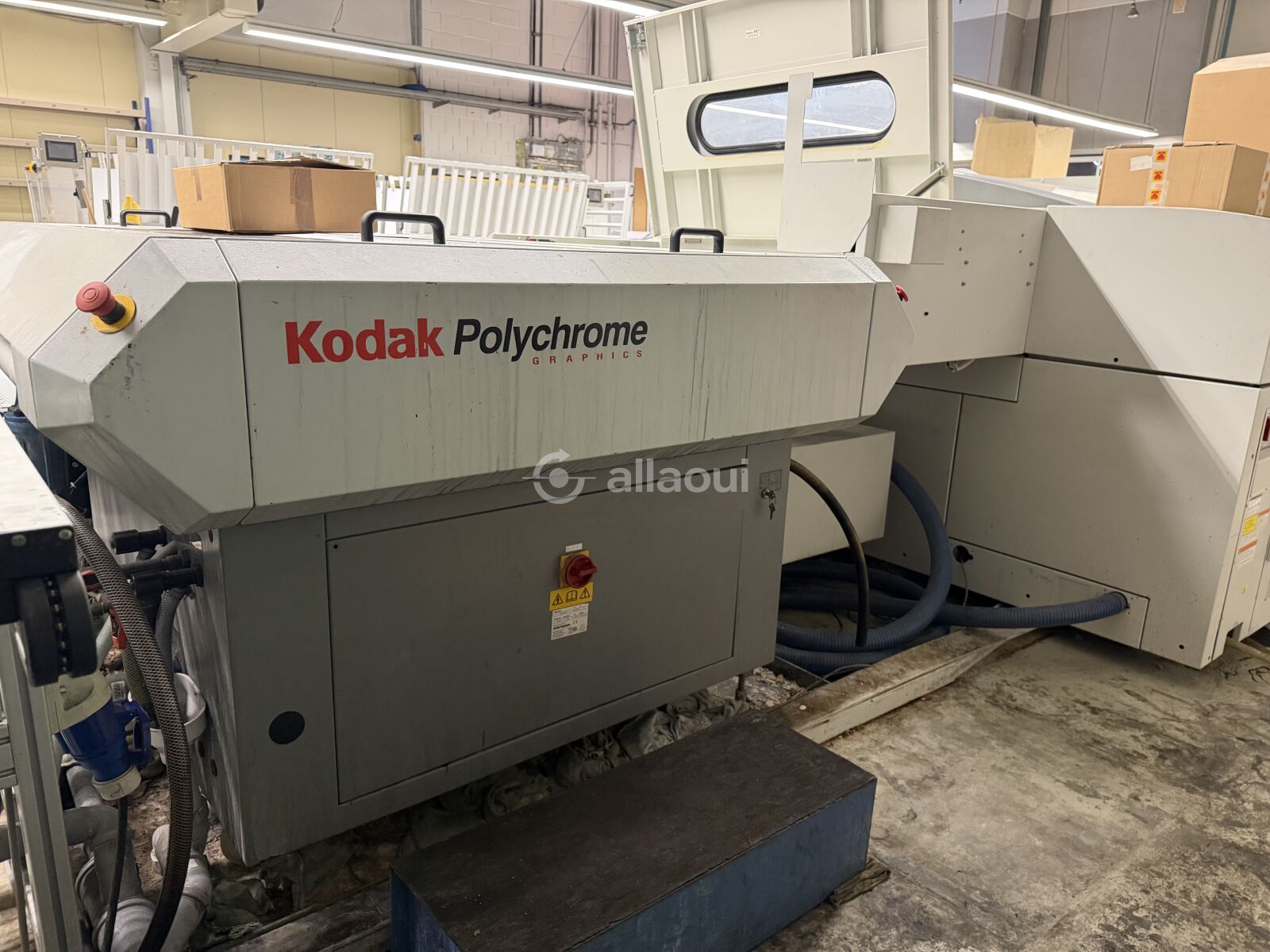

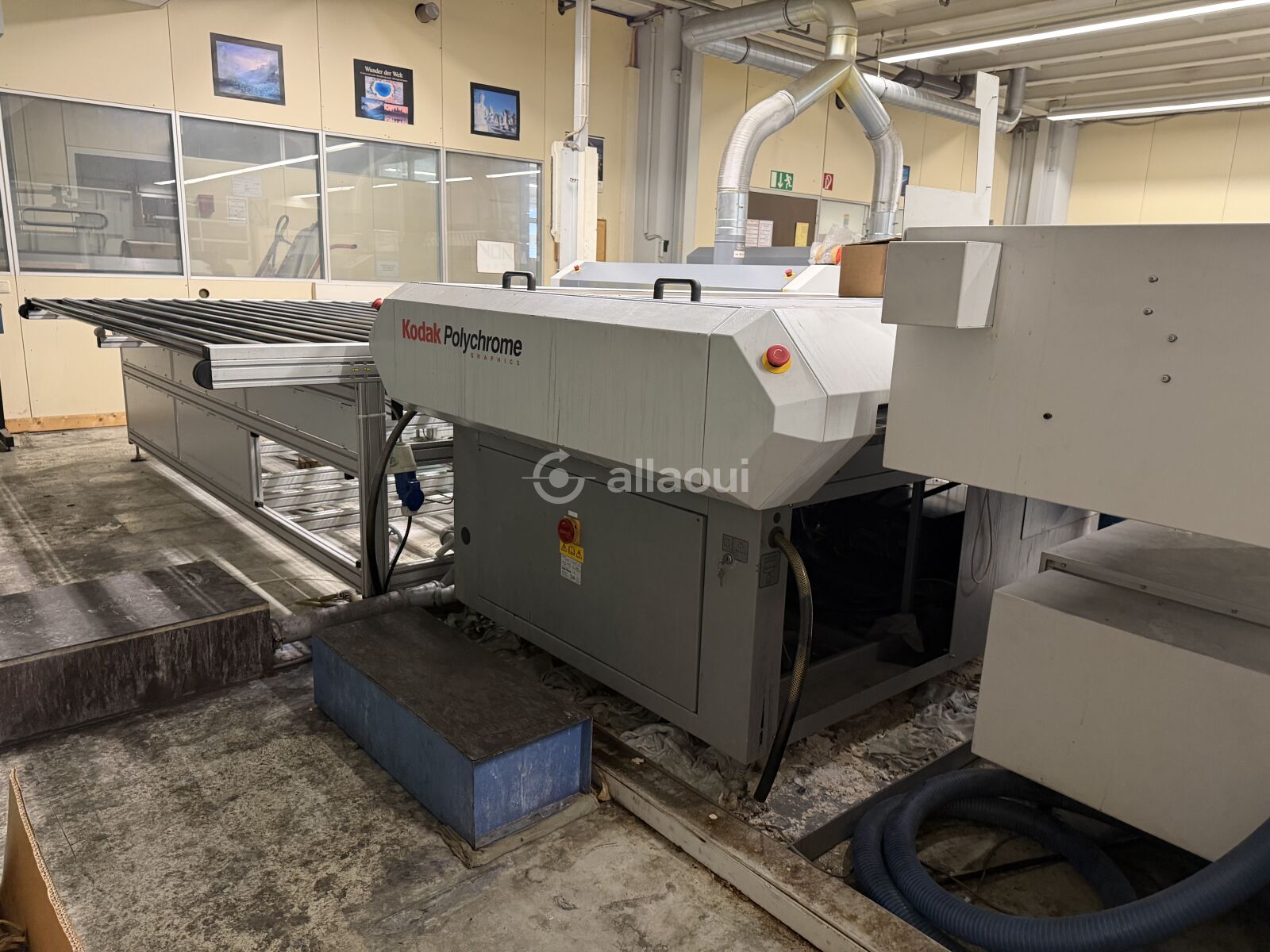

Plate Processor – KODAK MERCURY 1550 (Year of manufacture: 2006)
- Plate processor for large-format printing plates, matched to the Magnus VLF platesetter

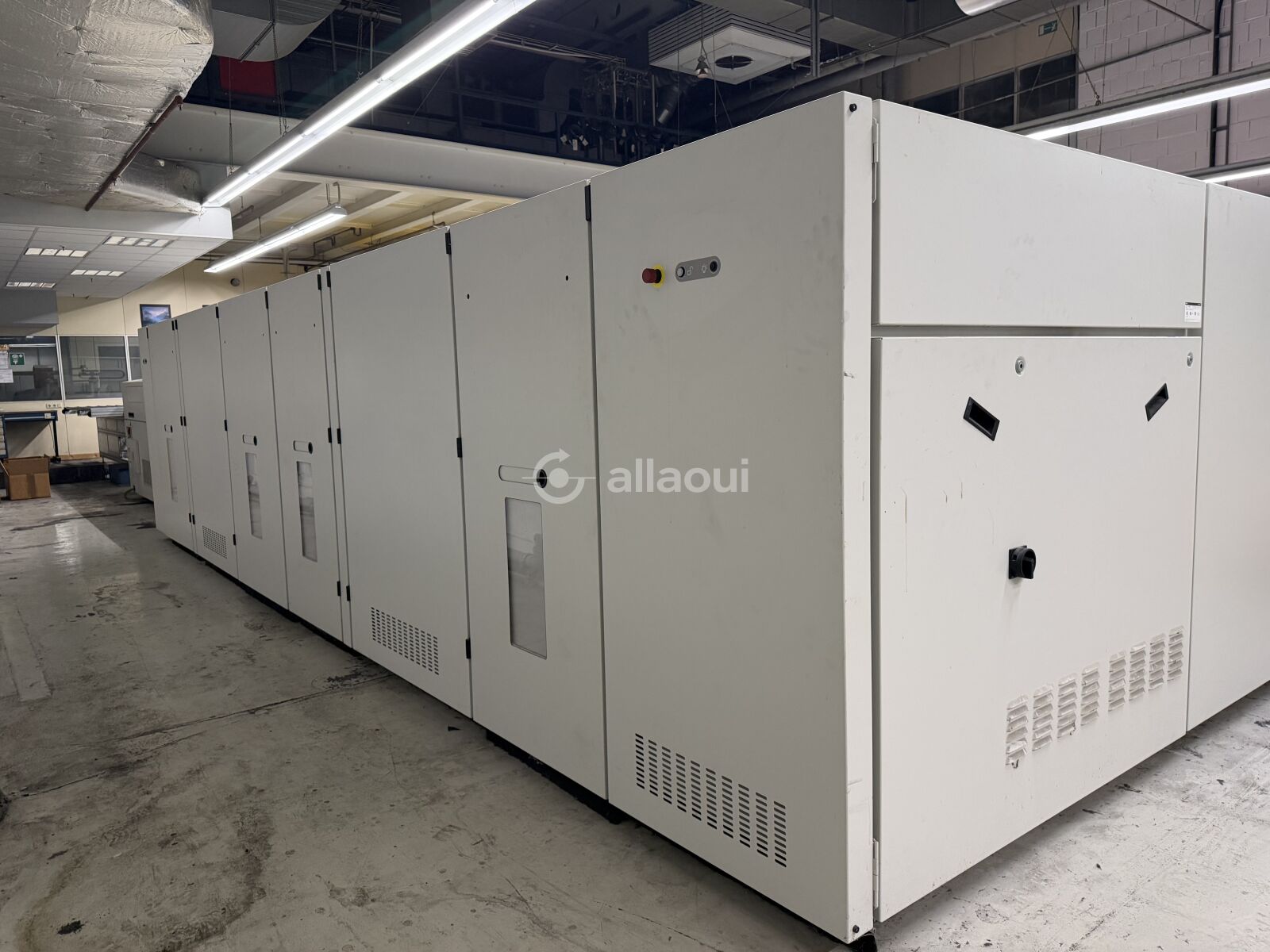

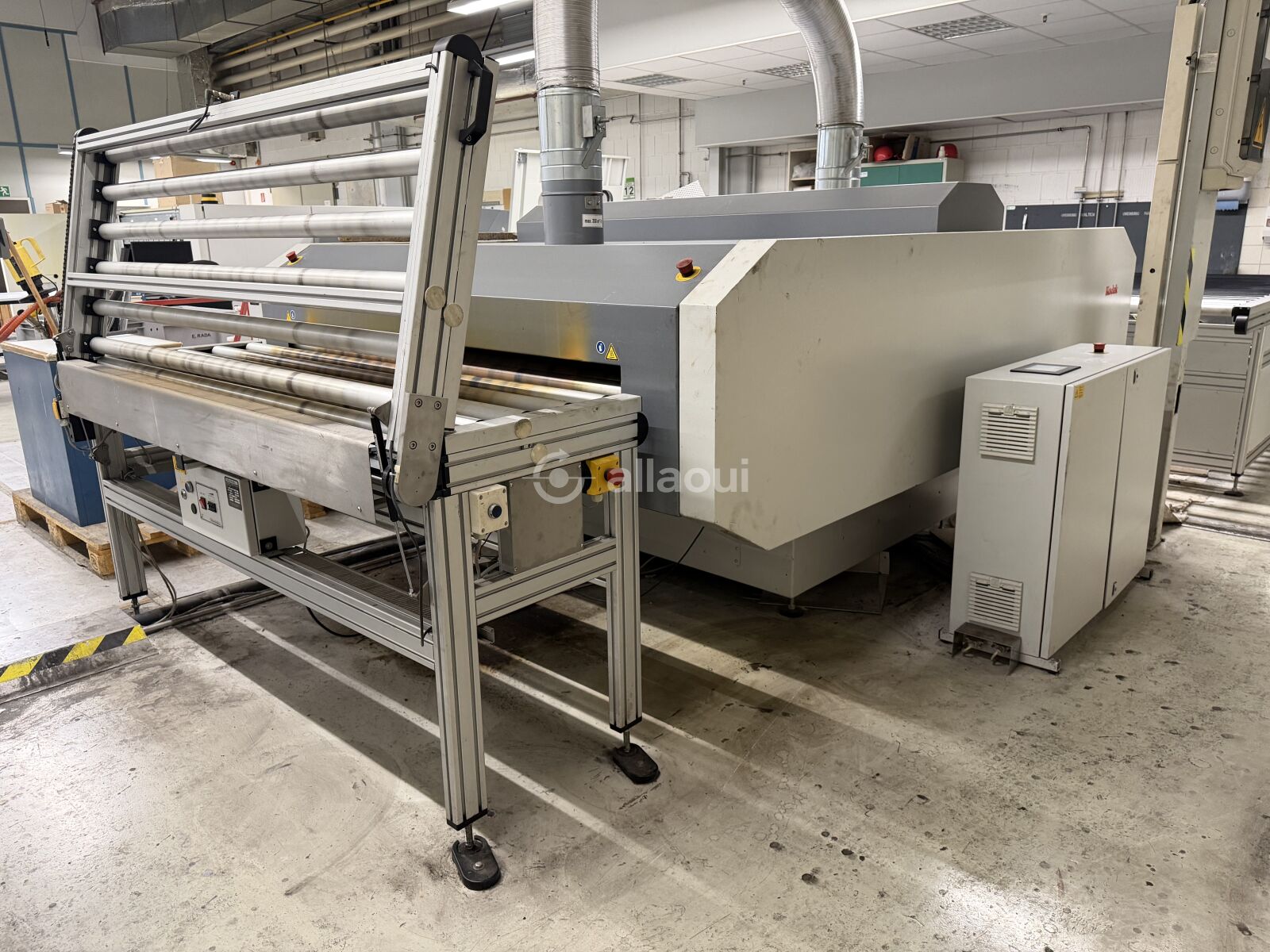

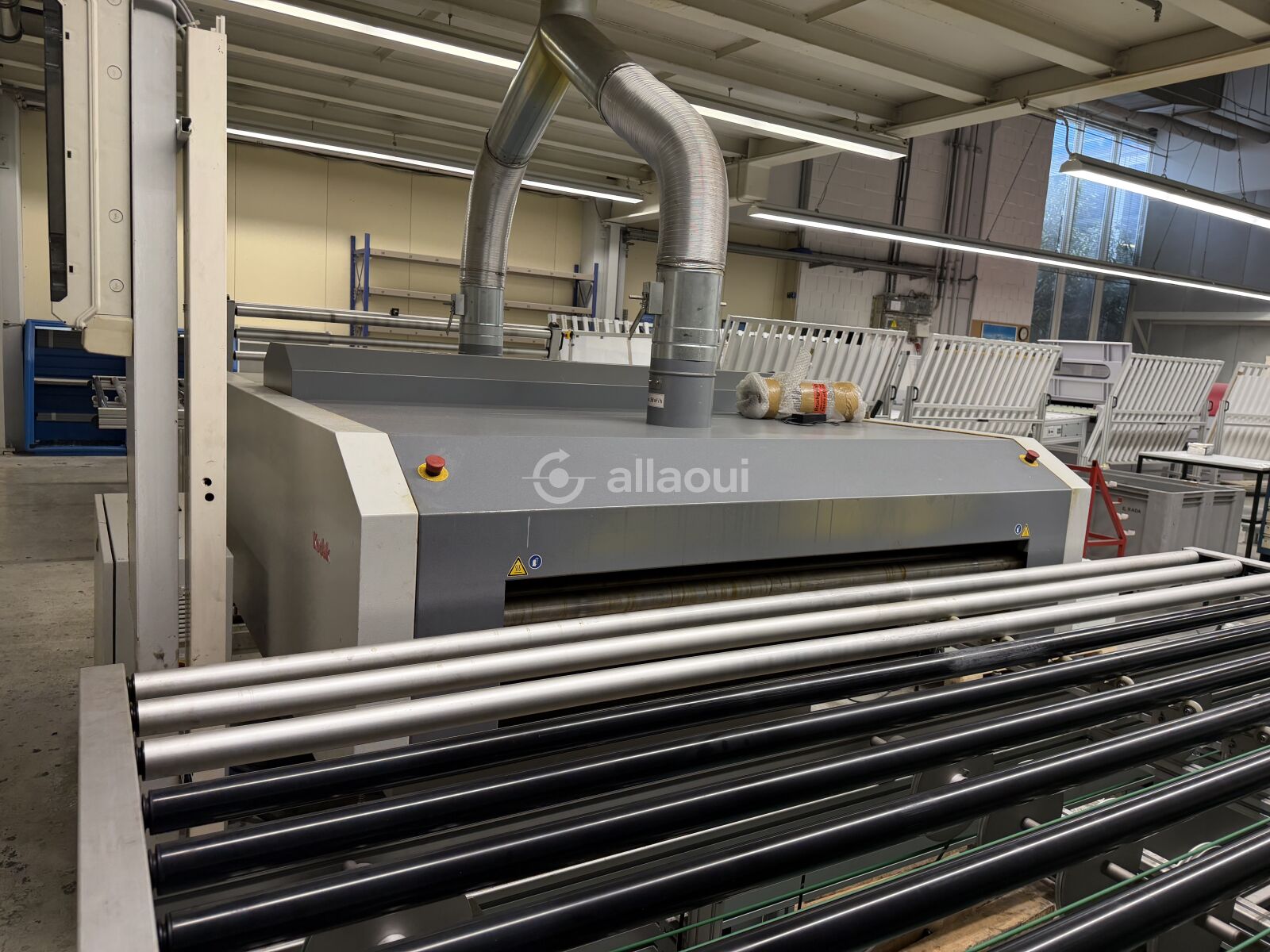

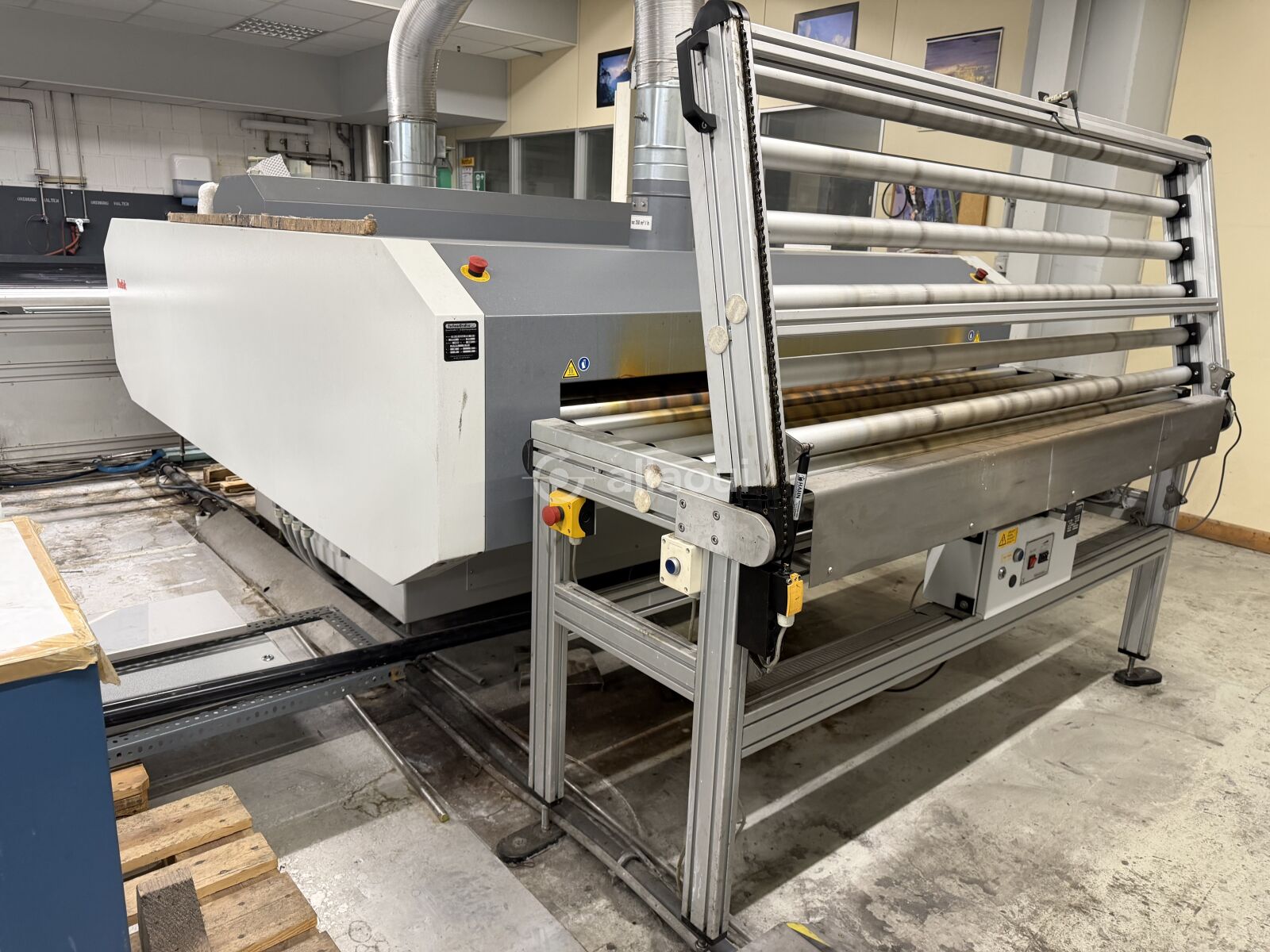

Plate Oven – TECHNO-GRAFICA EBO-HS-Ultra 1550 V3.0 (nameplate: EDT63032 V3.0) (Year of manufacture: 2013)
- Plate oven for large-format printing plates, high-speed version
Gumming Unit – TECHNO-GRAFICA SPG-HS 1550 V4.0
- Gumming unit for large-format printing plates, high-speed version

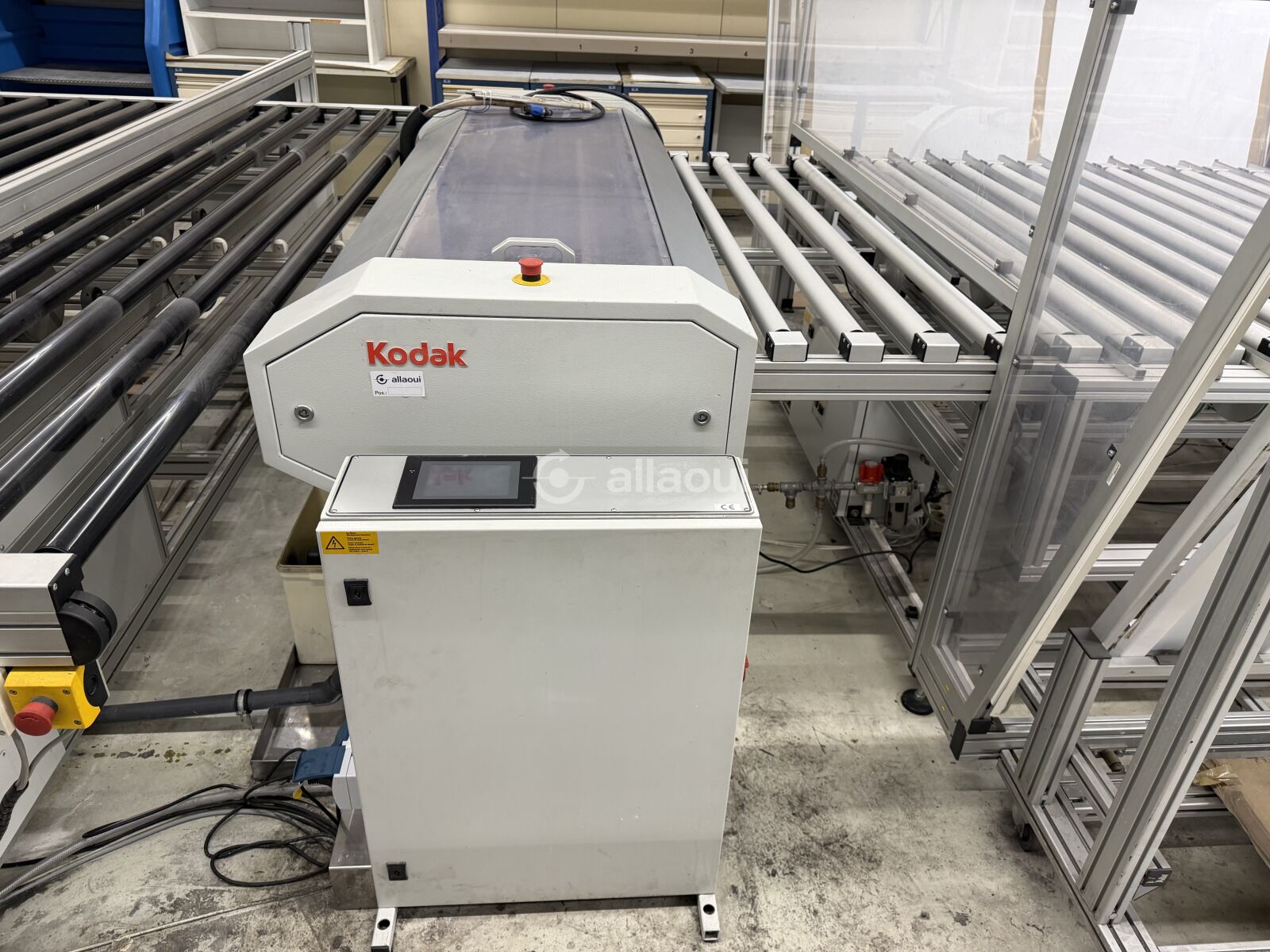

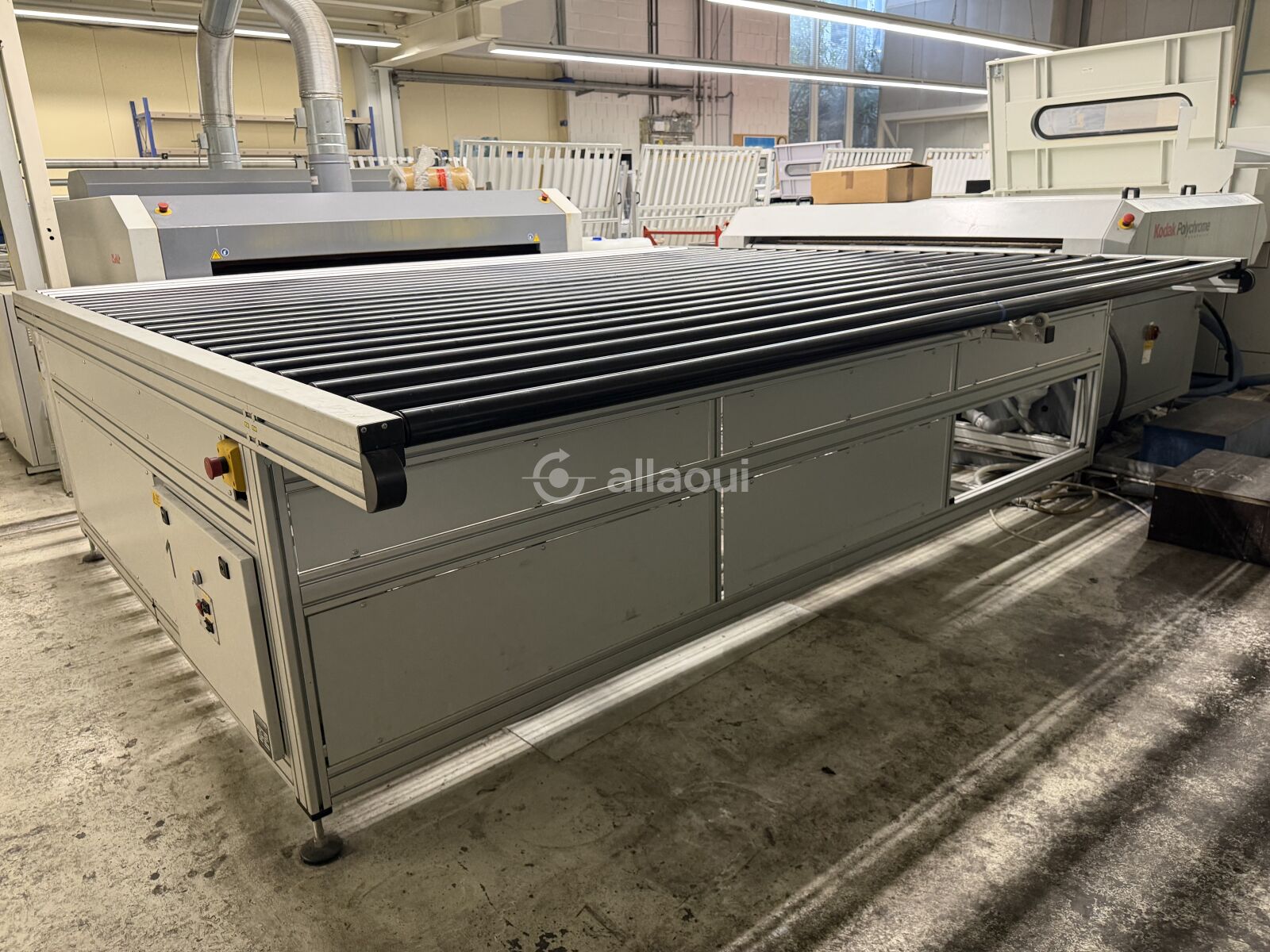

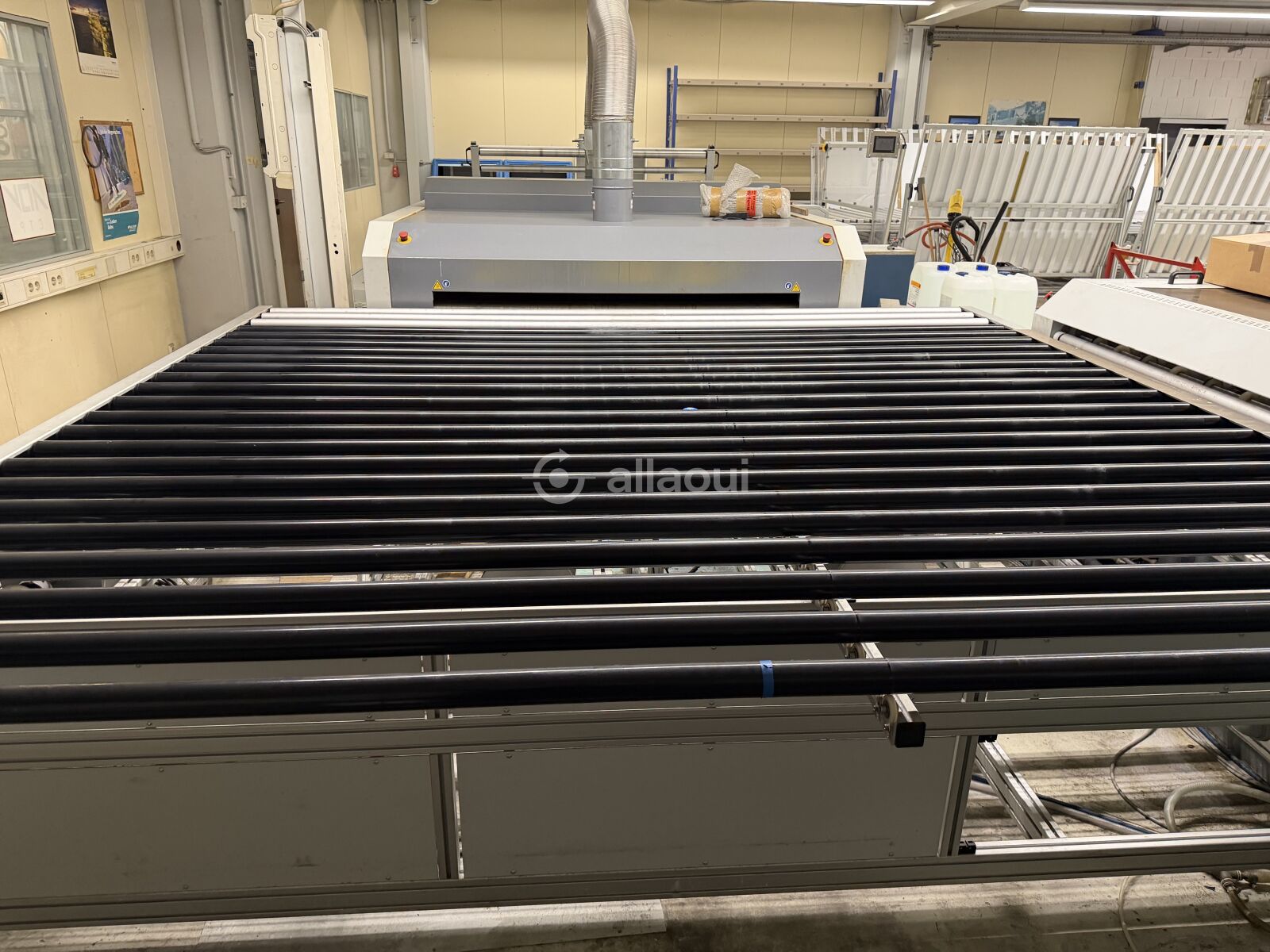

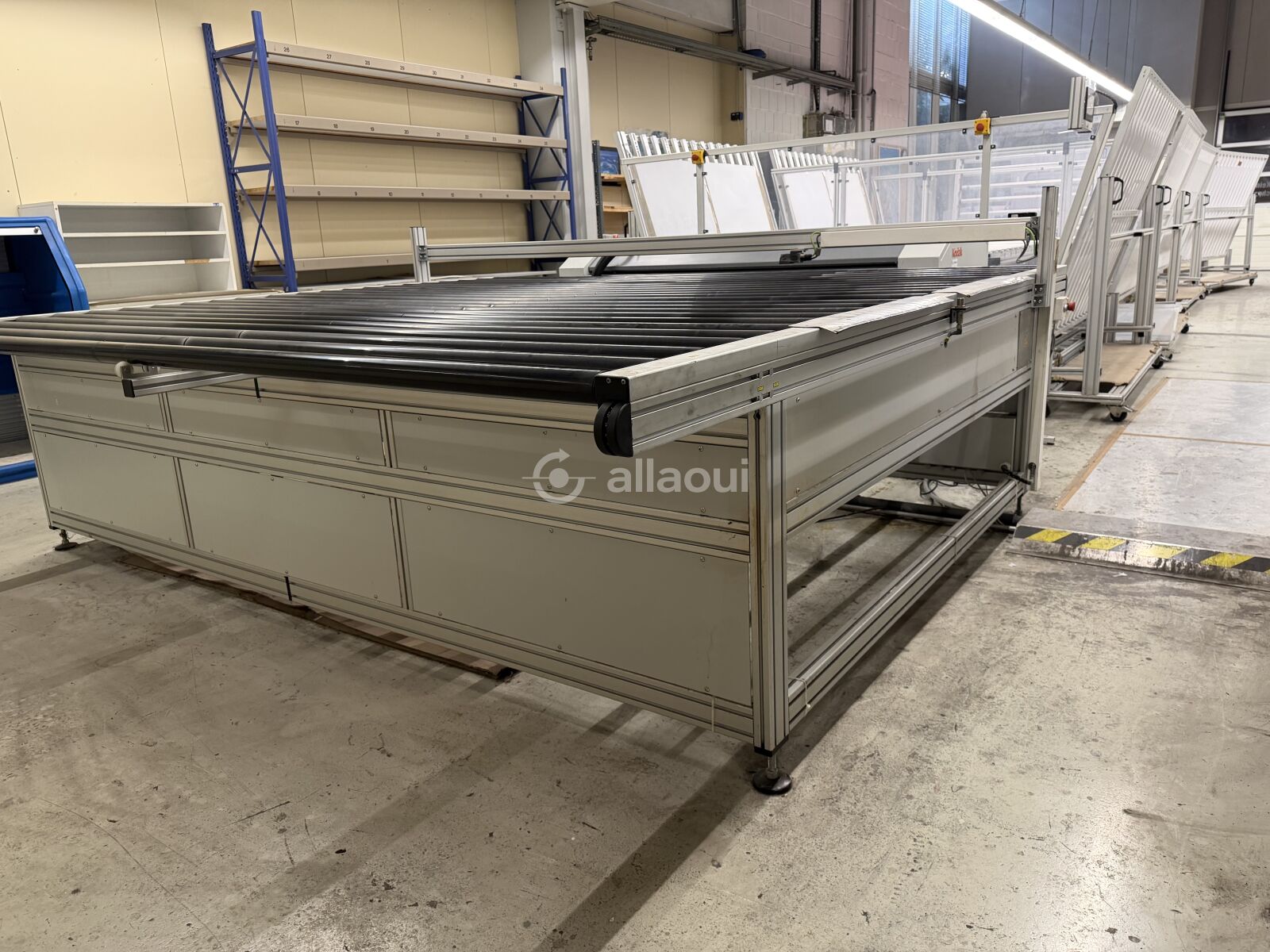

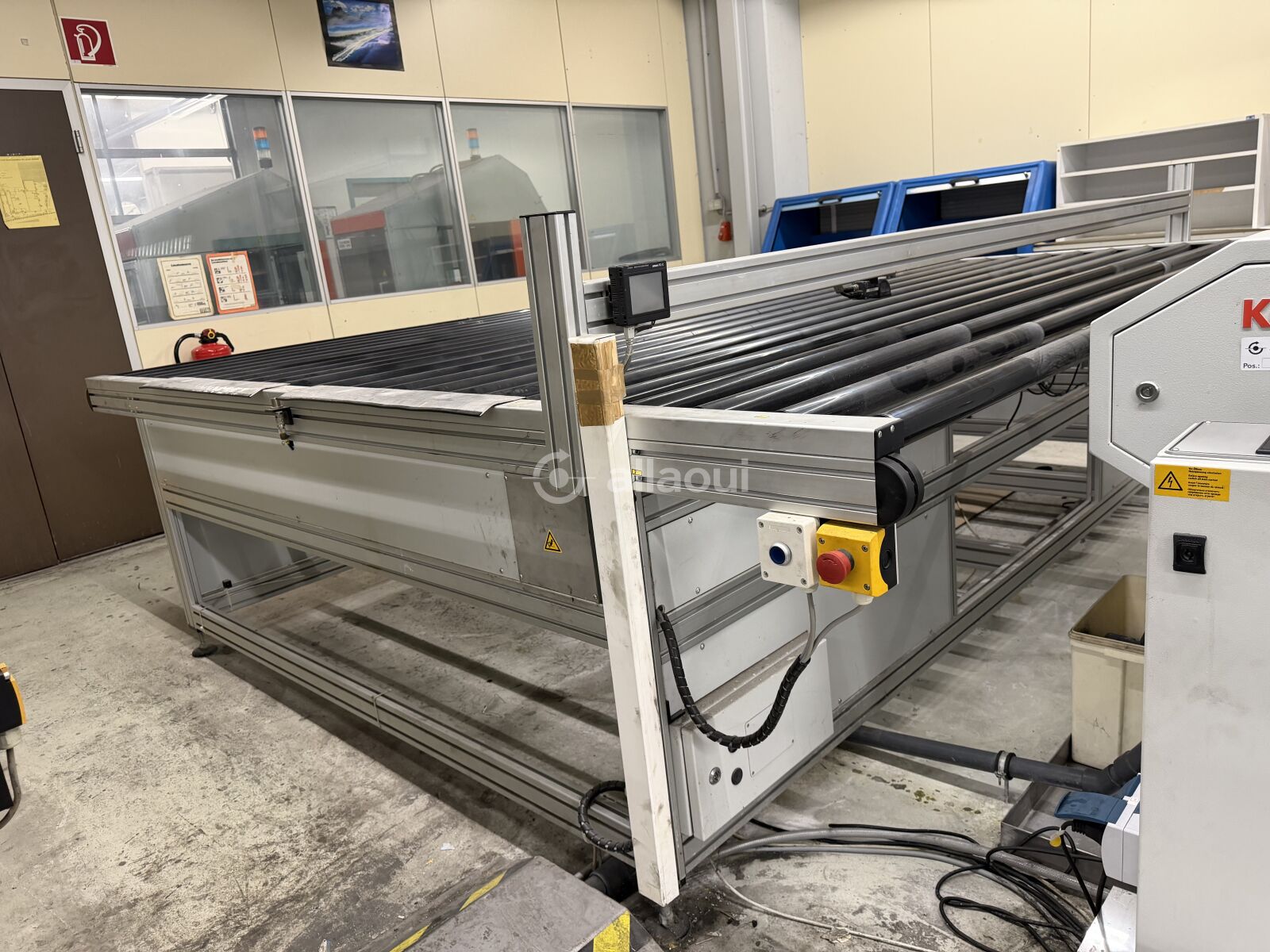

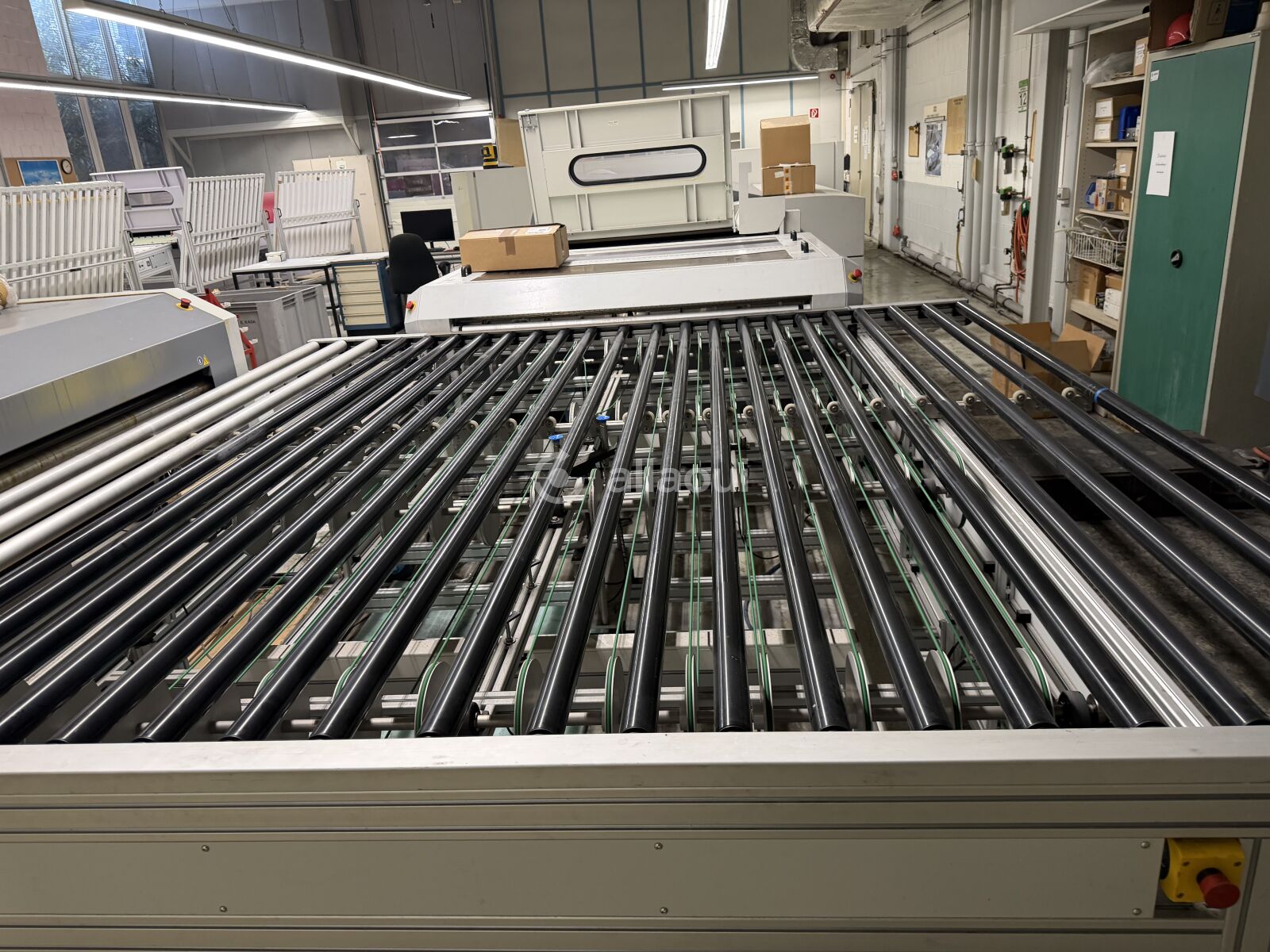

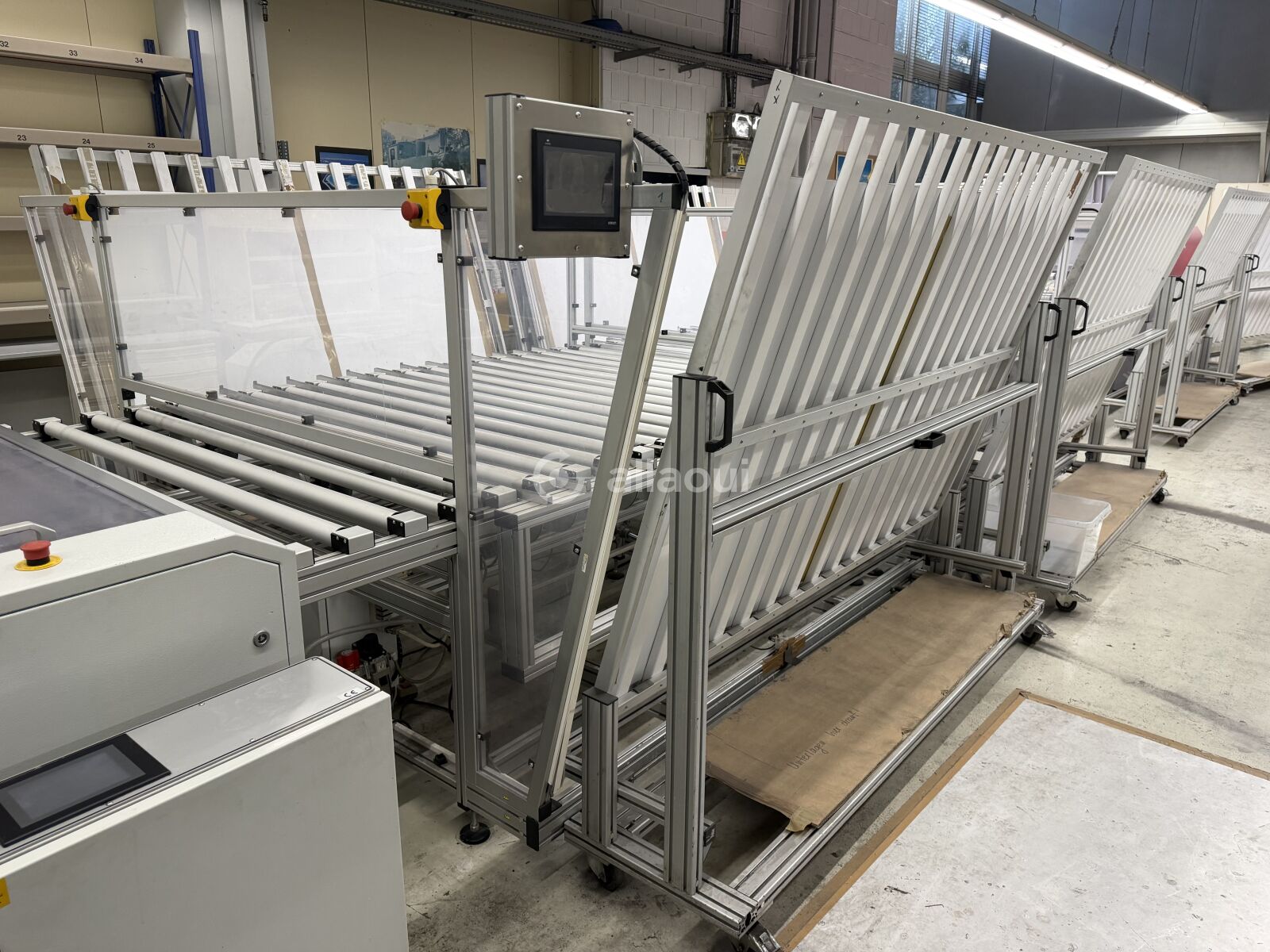

Conveyor Line – TECHNO-GRAFICA ZTA-1.5 1550 V3.0
- Intermediate transport system linking the line components, consisting of various roller conveyors

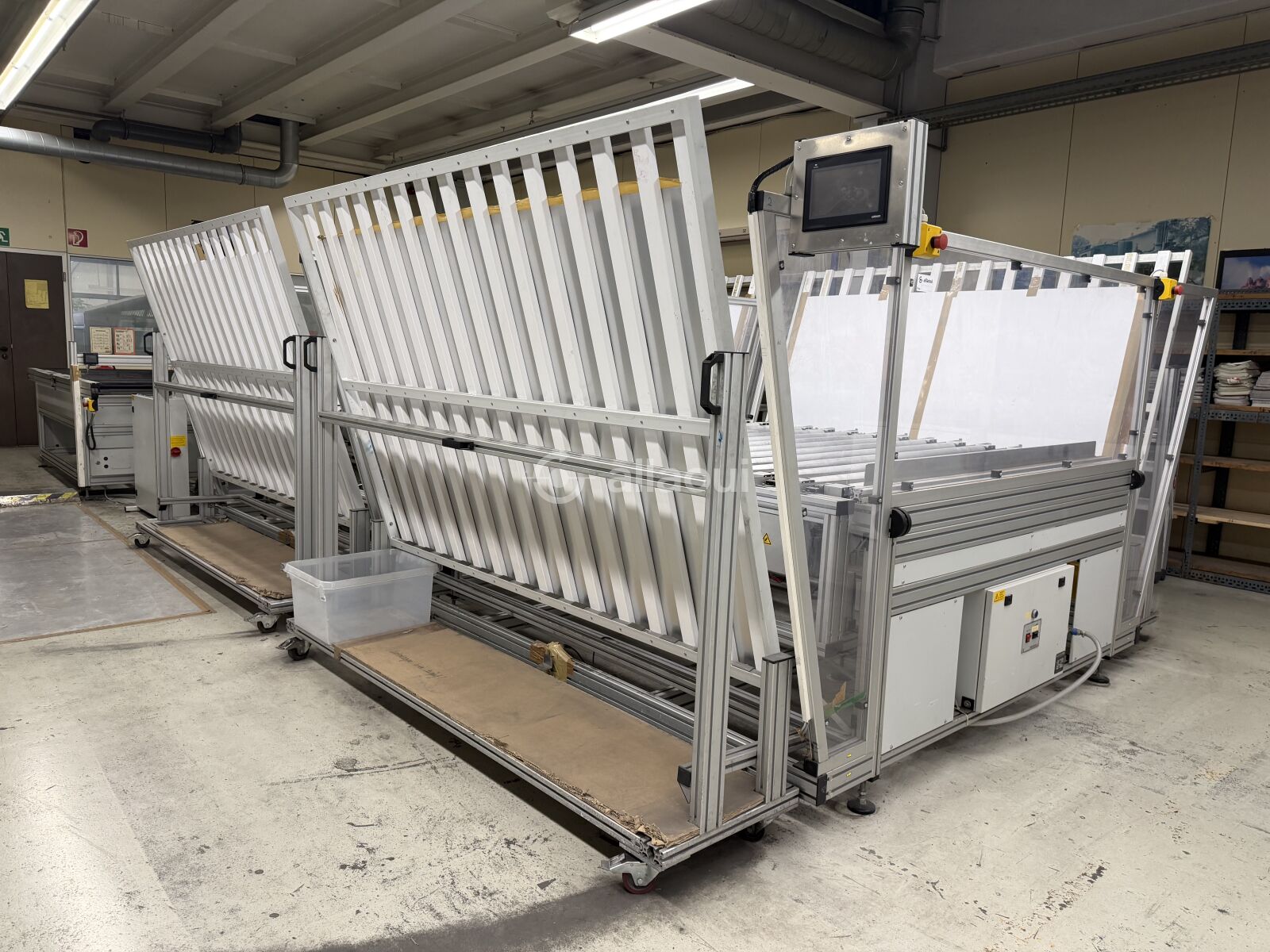

Delivery – TECHNO-GRAFICA PST-L+R9200 (2x)
- Conveyor system with 4 trolleys
Technical Details
| Parameter | Value |
|---|---|
| Throughput (platesetter, V-Speed, 1,030 mm) | up to 31.3 plates/h (dual-plate loading) |
| Throughput (platesetter, V-Speed, 2,070 mm) | up to 16.6 plates/h |
| Plate format (platesetter) | 483 x 394 mm – 1,600 x 2,083 mm |
| Plate format (APL segment 1) | max. 1,915 x 1,272 mm |
| Plate format (APL segment 2) | max. 1,470 x 1,276 mm |
| Max. plate width (processor / Plate oven / gumming unit) | 1,550 mm |
| Plate thickness (platesetter) | 0.15 – 0.4 mm |
| Resolution (platesetter) | 1,200 / 2,400 / 2,540 dpi |
| Robot capacity (APL, 2 segments) | max. 4 pallets / approx. 2,400 plates per loading cycle |
| Weight Plate oven | 1,400 kg |
| Weight gumming unit | 385 kg |
