Description
Specifications
Equipment
Gathering Machine
- Type: Kolbus ZU 841.B
- Year: 2007
- Gathering Stations: 24x
- Streamfeeders: 24x Kolbus STA 840
- Hand Feeding Station: Yes (over 2 station positions at the beginning of the ZU)
- Signature Control: Optoelectronic signature recognition system
- Thickness Control: Automatic sheet thickness control (ATC)
- Extended Jogger Element: Yes
- Reject Unit: Kolbus AS 841 (reject to the right)
- Setting-Up Shaft: With jogging
- Crane System: Yes, with 2 grippers
- Air Center: Becker Air Center
- Control: Touchscreen
Gathering Machine – Technical Details
| Parameter | Value |
|---|---|
| Mechanical Speed max | 12,000 cycles/h |
| Format max | 320 × 510 mm / 12.6 × 20.1 in |
| Format min | 105 × 105 mm / 4.1 × 4.1 in |
| Pile Height max | 250 mm / 9.8 in |
Book Block Feeder
- Type: Solema Fastbook
Endsheet Inserter
- Type: Kolbus VA 422.B
- Hand Feeding Station: Yes
- Hotmelt Nozzle Glue System: With premelter
- Dispersion Nozzle Glue System: Dismounted
- Transfer: To perfect binder
Perfect Binder
- Type: Kolbus Publica KM 411.B
- Year: 2007
- Control: Copilot system with touchscreen
- Number of Clamps: 30x
- Infeed: With coupling to endsheet inserter VA 422
Spine Preparation
- 1st Main Milling Station: Yes
- 2nd Main Milling Station: Yes
- Spine Processing Stations: 2x (leveling, notching)
Spine Gluing
- Base for Spine Gluing: 2 positions
- Cold Glue (Dispersion): 2x dispersion spine glue units with 3 mobile dispersion glue pumps
- IR Intermediate Drying: Yes, 6 kW (between both spine glue positions)
- Hotmelt: 1x exchange hotmelt spine glue unit with premelter Kolbus LH 375.B (2013)
- PUR: 1x PUR spine gluing units with 1x premelter
- Nordson Drum Melter: DuraPail Type 729340 (2006)
Side Gluing
- Cold Glue (Dispersion): 1x dispersion side glue unit
- Hotmelt: 1x exchange hotmelt side glue unit with premelter Kolbus LH 375.A (2014); 1x exchange hotmelt nozzle side glue unit with integrated premelter
- PUR: 1x PUR side glue unit (no premelter)
Gauzing
- Gauzing Station: Yes
Cover Feeding
- Cover Feeder: Stream cover feeder Kolbus SAL 411.B
- Creasing Station: For 4x creasing
Pressing & Delivery
- Pressing Stations: 2x
- High-Frequency Drying: Yes, 25 kW
- IR Heating: In deflection area
- Delivery: Straight delivery
- Lay-Down Device: To the left, with shingling function
Perfect Binder – Technical Details
| Parameter | Value |
|---|---|
| Mechanical Speed max | 12,000 cycles/h |
| Mechanical Speed max (with gauzing station) | 8,000 cycles/h |
| Book Block Format max (W × H × T) | 320 × 510 × 70 mm / 12.6 × 20.1 × 2.8 in |
| Book Block Format min (W × H × T) | 100 × 105 × 3 mm / 3.9 × 4.1 × 0.1 in |
| Binder Infeed Channel Width max | 80 mm / 3.1 in |
| Book Block Overhang min | 8 mm / 0.3 in |
| Spine Milling Depth max | 20 mm / 0.8 in |
Drying Conveyor
- Type: Conveyor belts
- Approximate Length: ~100 m
- Intermediate Delivery: Kolbus TS.ZD
- Belt Control Cabinet: Kolbus TS.E
- Conveyor Deviation Routes: To the left: Wagner Stacker (2003); Straight: Kolbus TR 160 Splitting Saw
Splitting Saw
- Type: Kolbus TR 160
- Year: 2003
- Block Infeed: From the right
- Straight Infeed: To infeed belt
- Outfeed: Turning belt to the right, flat belt to the left
- Machine Elevation: Raised by 300 mm
- Conveyor Deviation after Splitting Saw: To the left: Kolbus HD 153.M Three-Knife Trimmer; Straight: MBT Masuri STD Stacker
Three-Knife Trimmer
- Type: Kolbus HD 153.M
- Year: 2011
- Control: Copilot system with touchscreen
- Infeed: Right infeed
- Magazine Operation: Yes
- Cutting Tables: Standard (No. 7–18)
- Transport: Gripper transport system
- Knife Setting Device: Yes
- Spare Knives: 2 sets
Three-Knife Trimmer – Technical Details
| Parameter | Value |
|---|---|
| Mechanical Speed max | 6,600 cuts/h |
| Format max (cut) | 300 × 420 × 80 mm / 11.8 × 16.5 × 3.1 in |
| Format min (cut) | 100 × 120 × 1.5 mm / 3.9 × 4.7 × 0.06 in |
| Format max (uncut) | 310 × 430 × 80 mm / 12.2 × 16.9 × 3.1 in |
Stacker
- Type: Kolbus / RIMA XRS 130 (cross layer)
- Year: 2007
- Outfeed: With coupling to stack aligner
- Outfeed: With roller conveyor
Delivery and Peripherals
- Blocking Unit: Kolbus VB 120
Similar Machines
Kolbus Publica KM 412.B
High-Performance softcover binding line equipped , 21 gathering stations, streamfeeders, 2 Card gluers, 2 Spine and 1 Side gluing stations, Hotmelt and PUR, Gauzing, Splitting Saw, Three-knife Trimmer...
Kolbus Publica KM 412.C
15,000 cycles/h, 15 gathering stations, 9 streamfeeders, hand feeding stations, 30 clamps, Hotmelt and PUR gluers, cover feeder, three-knife trimmer, stacker, palletizer
Kolbus KM 491.P
Perfect binding line equipped with 25 gathering stations, hand feeding station with book block feeder, 16 streamfeeders and crane system, 32 clamps, Hotmelt and PUR gluers, premelters, gauzing station...
Kolbus KM 200
Hand feeding station, End-Sheet, PUR Spine and Hotmelt Side gluing stations with premelters, Gauzing station, Cover Feeder, Ambaflex drying turm, Kolbus HD 143.D
Müller Martini Corona C15 S/35
12 gathering stations with ASIR 3, 10 streamfeeders and crane system, 35-clamp binder with Two-Shot Heißleimklebung, Zenith S three knife trimme, and CB 16 Stacker

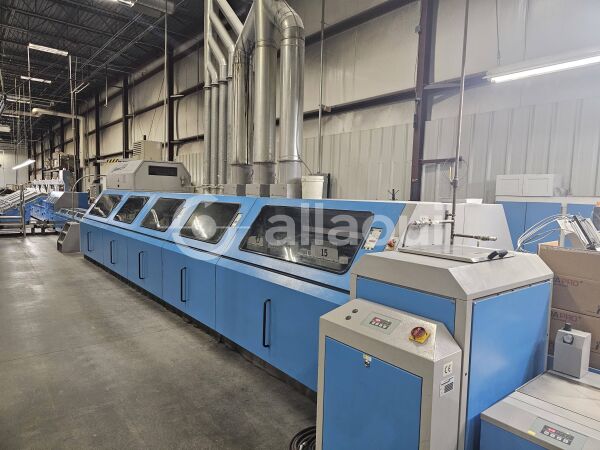

Müller Martini Corona C12
